Product Description
XL Specialized | 90 MDE Extendable Lowboy | XL 90 MDE-W | 50'4" Extendable Deck | 90,000 lbs Capacity | 102" Wide | For Heavy-Duty Hauling & Oversized Loads
Ripping It is Partnered with Western Truck to provide the best pricing and service for XL Specialized.
DESCRIPTION
The XL Specialized 90 MDE Extendable Lowboy Trailer is an elite, heavy-duty transport solution designed for flexibility, strength, and reliability in demanding hauling applications. Engineered to support up to 90,000 lbs evenly distributed when fully closed and 70,000 lbs when fully extended, this trailer offers exceptional load-carrying capacity while maintaining precise weight tolerance (+/-3%) for performance optimization.
Built for power requirements (kW/HP optimized), the XL Specialized Lowboy ensures seamless integration with semi-trucks for efficient and reliable operation. With a full-width gooseneck, extendable main deck, and advanced air ride suspension, this trailer adapts to a wide variety of transport needs from oversized machinery to heavy construction materials.
With premium Apitong decking, a reinforced steel frame, and an advanced electrical system, the XL 90 MDE offers secure load management, superior axle performance, and maximum operational efficiency. Loaded with extra features, this trailer is new and ready for deployment in high-performance transport applications.
Key Features
- Heavy-Duty Steel Frame & Construction: Built with reinforced fabricated steel beams for durability. Black urethane finish for protection against wear and corrosion.
- Extendable Main Deck for Versatility: 29’ deck length extends to 50’ 4” to handle oversized cargo. Loaded deck height of 20” with 6” ground clearance for smooth transport.
- Optimized Hydraulic Power: Engineered for power efficiency, ensuring smooth operation with optimized kW/HP requirements.
- Gooseneck for Secure Hauling: Full-width neck, 10' length with 16" kingpin setting for stability. Toolbox with lockable lid, work light, and registration holder for added convenience.
- Advanced Load Securement & Support: D-Rings for secure load attachment at multiple points on each deck. Swing-out outriggers on 24” centers for broad cargo stabilization.
- Superior Suspension & Axle Configuration: Hendrickson Air Ride suspension with (2) 25,000 lbs axles for smooth performance. ABS 4S2M braking system ensures safety in high-load conditions.
- High-Performance Tires & Wheels: 255/70R22.5 tires paired with steel disc wheels (inside) and polished aluminum (outside).
- Precision-Engineered Electrical System: 12V sealed Grotes system with battery backup and trickle charge capability. 3 taillight aluminum package, plus amber strobes for enhanced visibility.
- Flip Neck & Booster Compatibility: Prepped for Flip Neck installation for adaptability. Configured to accommodate a 2-axle booster, ensuring flexibility for heavy loads.
Detailed Specifications
| Component | Specification |
|---|---|
| Model | XL 90 MDE-W (Warrior) |
| Condition | Brand New |
| Capacity (Closed) | 90,000 LB (evenly distributed) |
| Capacity (Extended) | 35,000 LB front/rear – 70,000 LB total (±3%) |
| Main Deck Length | 29’ (extends to 50’4”) + 30” stationary |
| Main Deck Height | 20” loaded with 6” ground clearance |
| Gooseneck | Full-width, 10’ long, 49” 5th wheel height |
| Kingpin / Swing | 16” setting / 84” swing clearance |
| Decking | 1 1/8” flush Apitong (main + rear decks, center covered) |
| Axles | (2) 25,000 LB nominal, 5/8” wall |
| Suspension | Hendrickson Air Ride / 54” axle spacing |
| Brakes | 16.5” x 7” w/ ABS (4S2M) & spring brakes on both axles |
| Tires / Wheels | 255/70R22.5 (H) / Steel (inside), Polished Aluminum (outside) |
| Ramps / Transition | Tapers to 4”, 2’x2’ cutout in transition |
| Outriggers | Removable, swing-out every 24” |
| Electrical | 12V sealed Grotes w/ LED clearance, strobe, battery backup |
| Air System | Manual Ride Height Control + Raise/Lower Valve |
| Toolbox & Extras | Lockable toolbox, flag holders, rubber glad hand covers |
| Rear Connection | Prepped for 2-axle booster |
| Power Requirement | 13 HP (9.7 kW) hydraulic power unit or truck wet kit |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

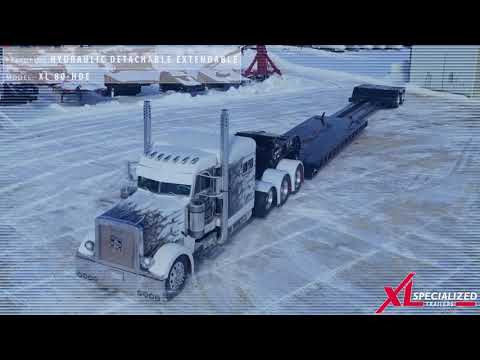

Videos
