YANMAR

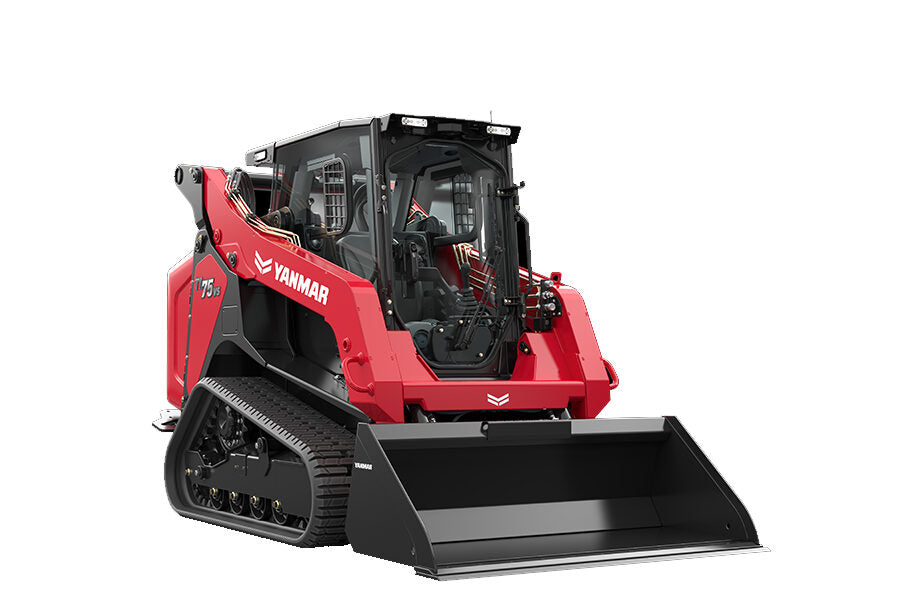

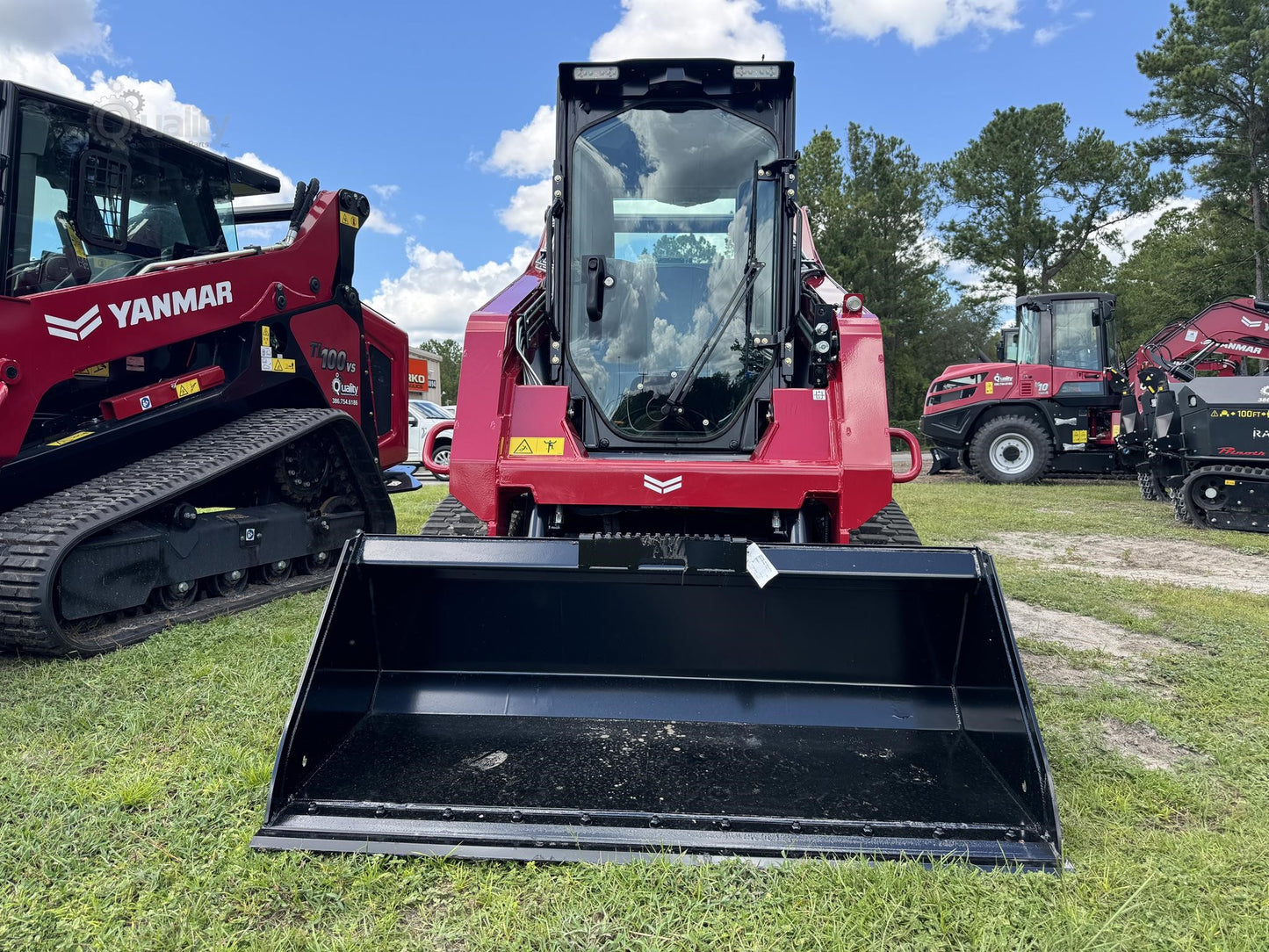

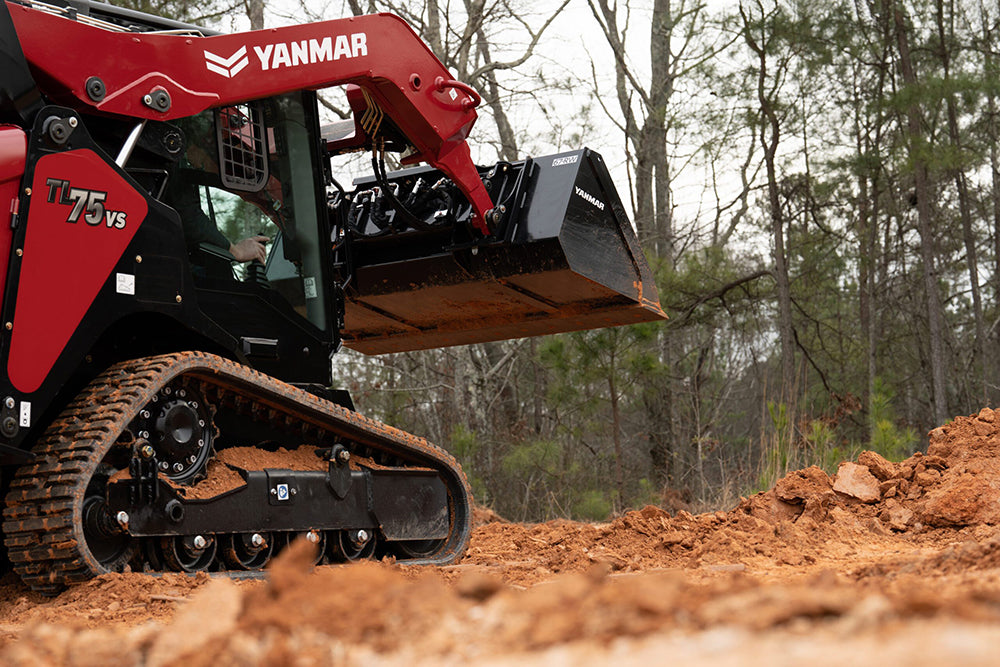

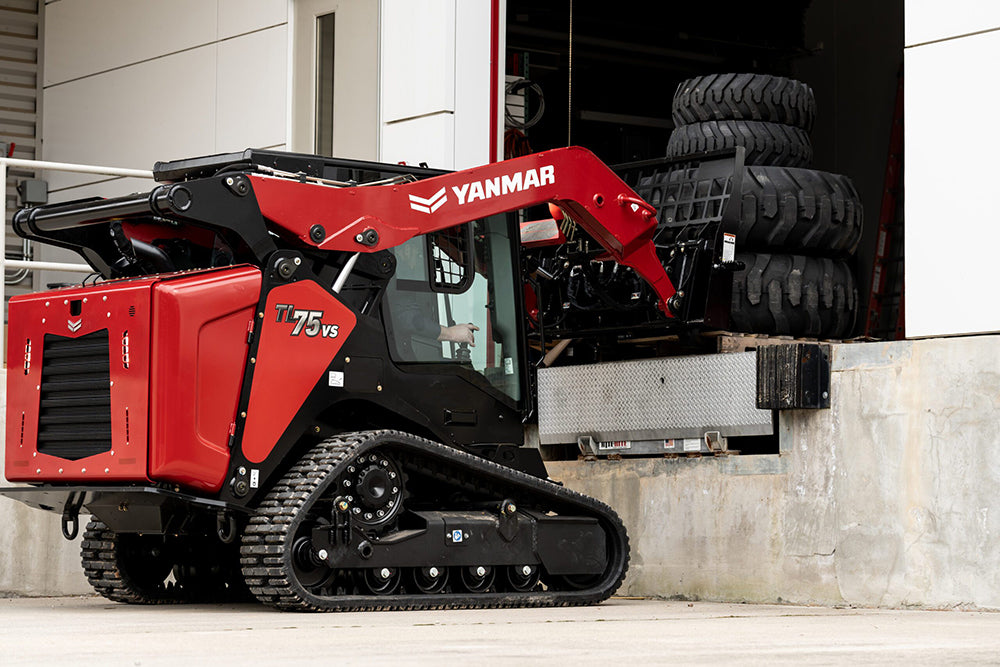

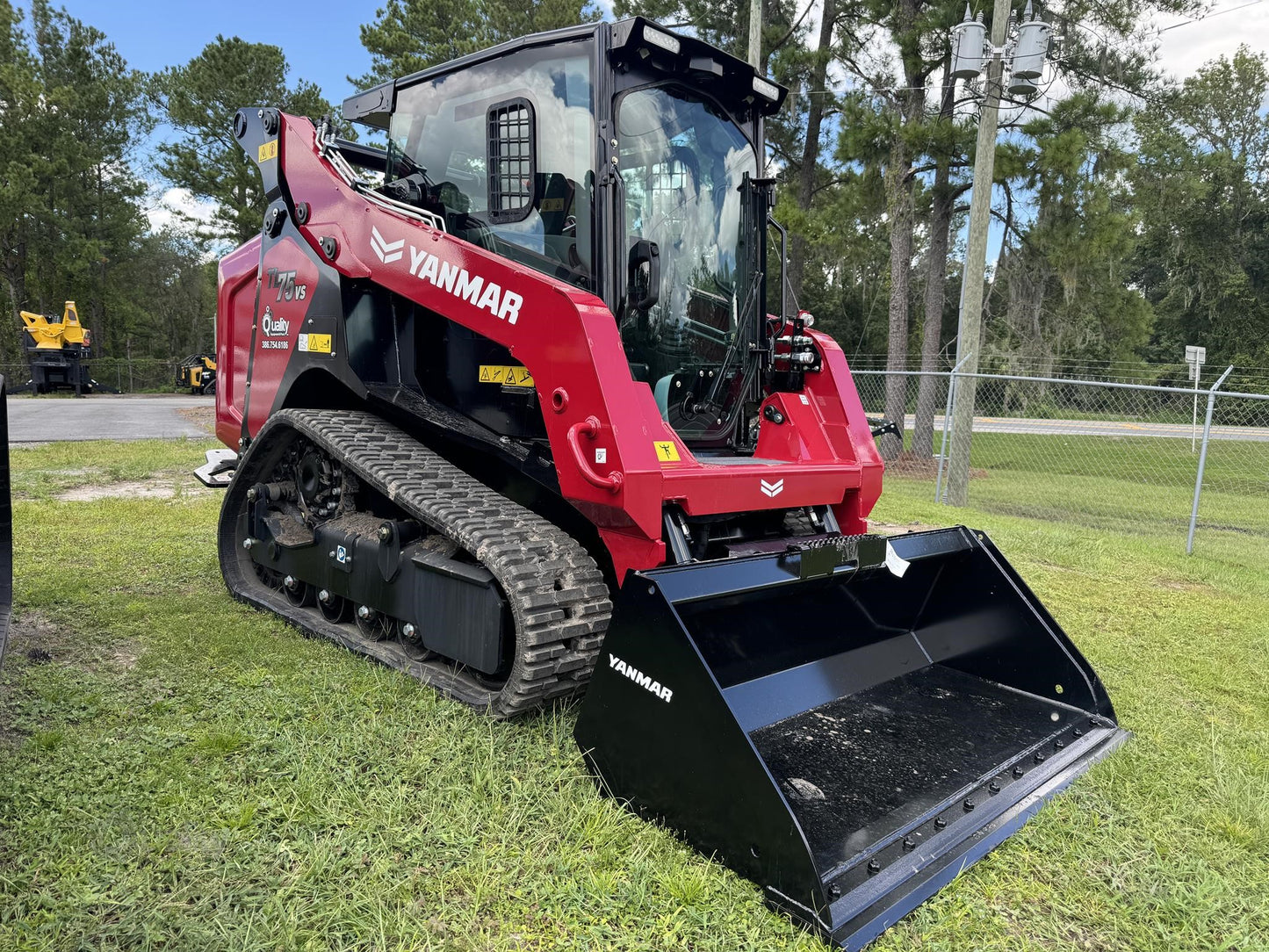

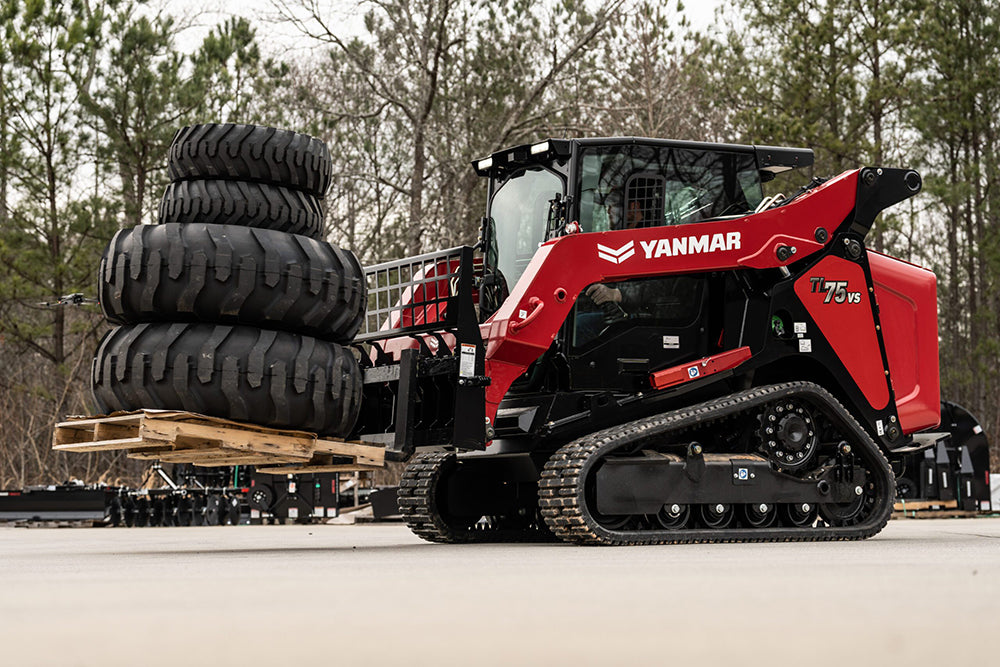

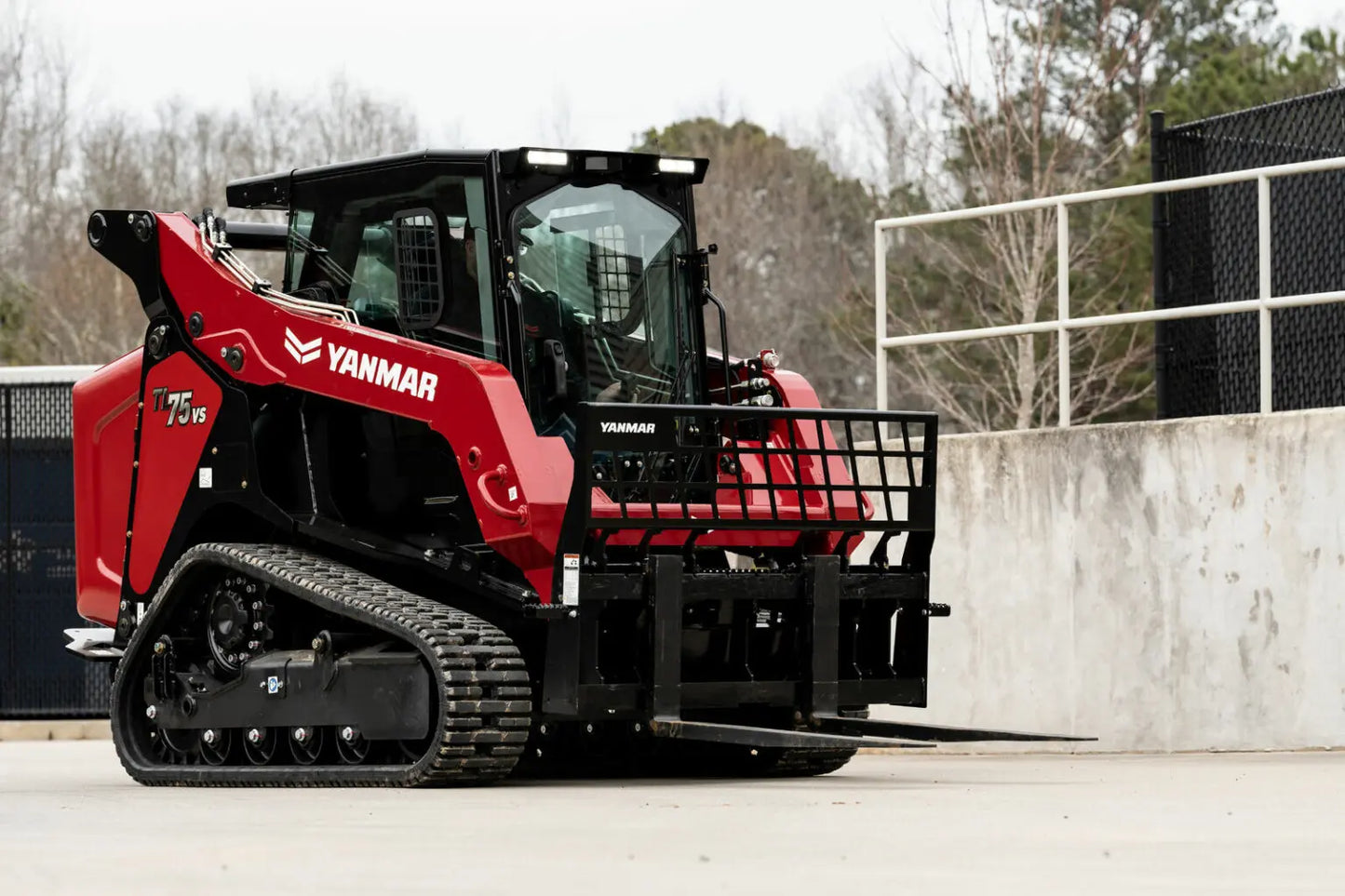

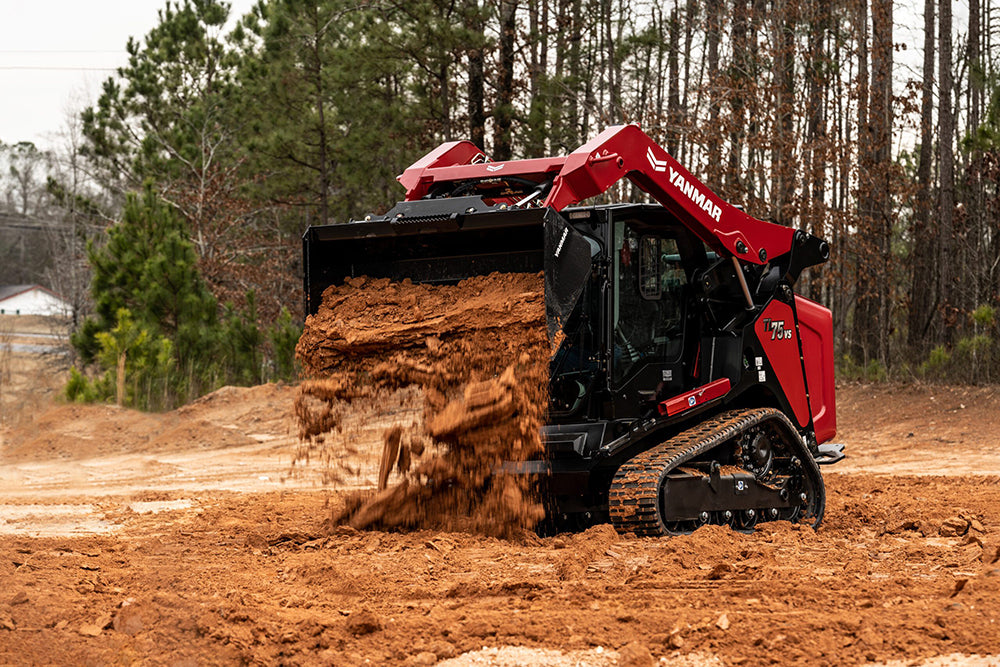

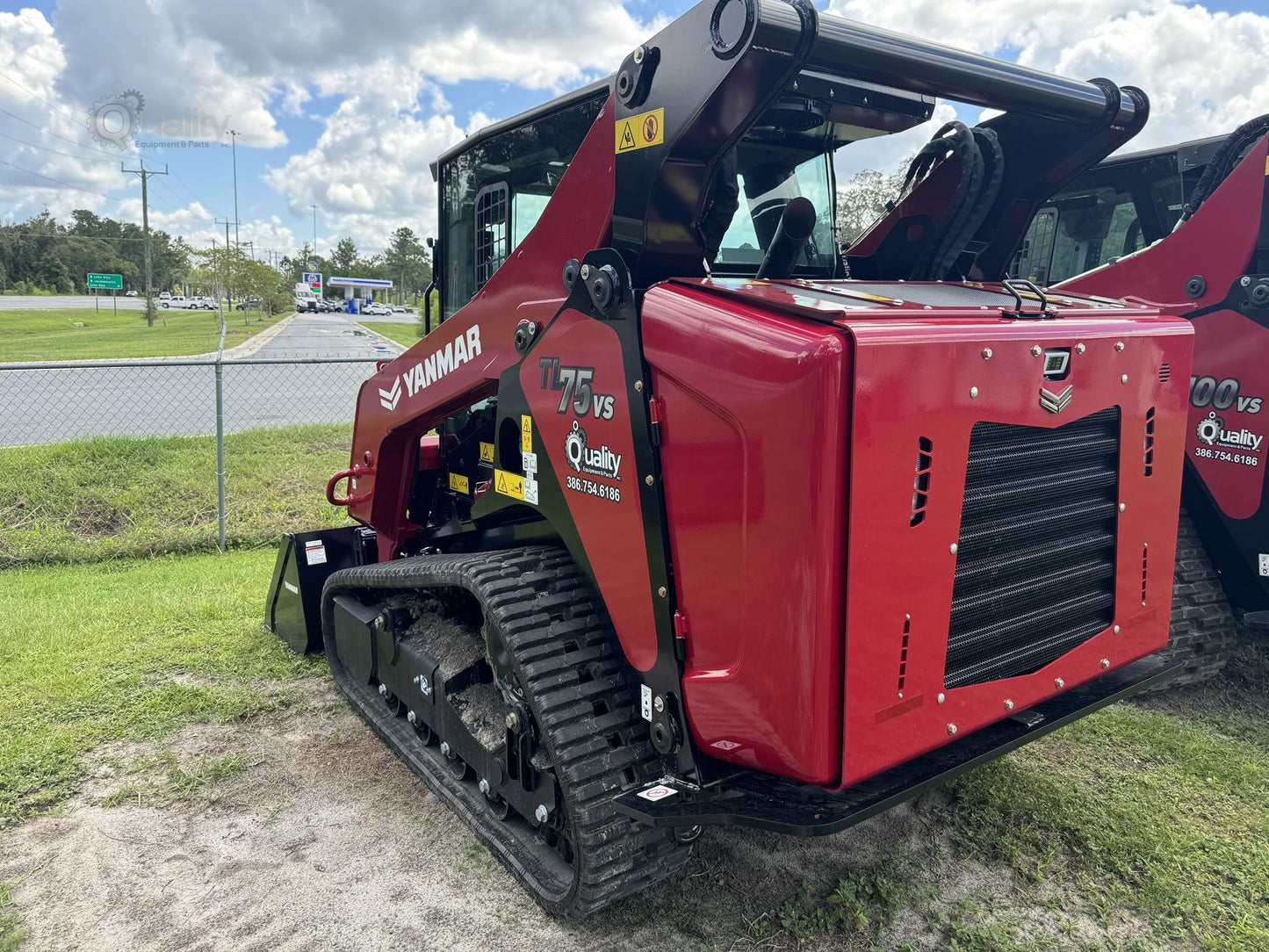

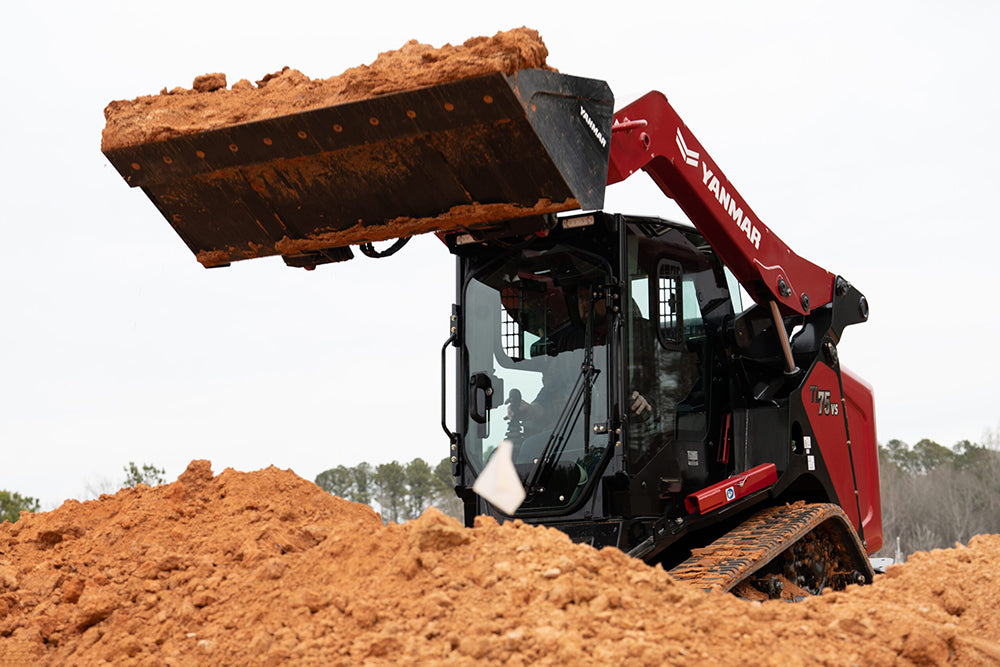

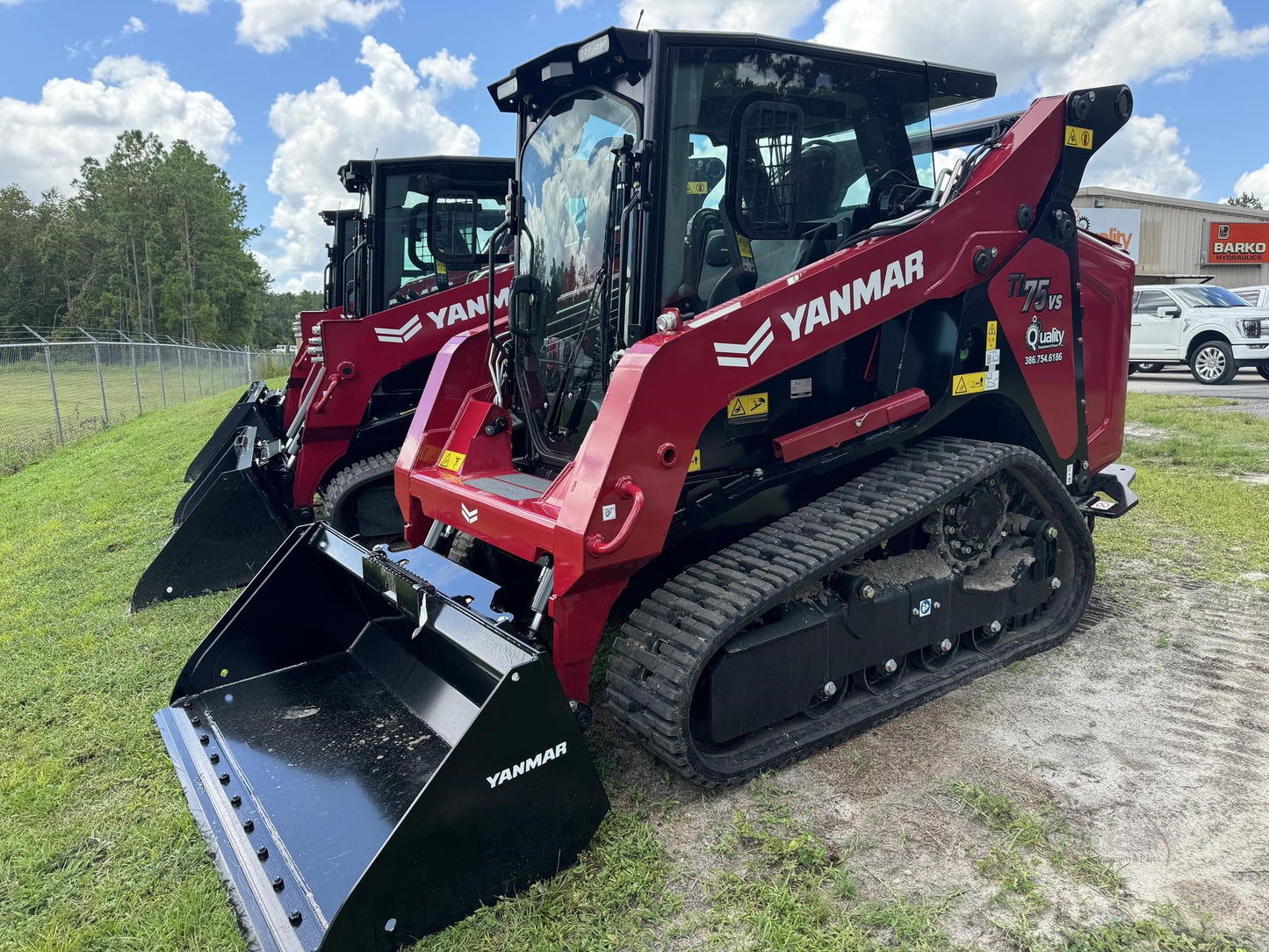

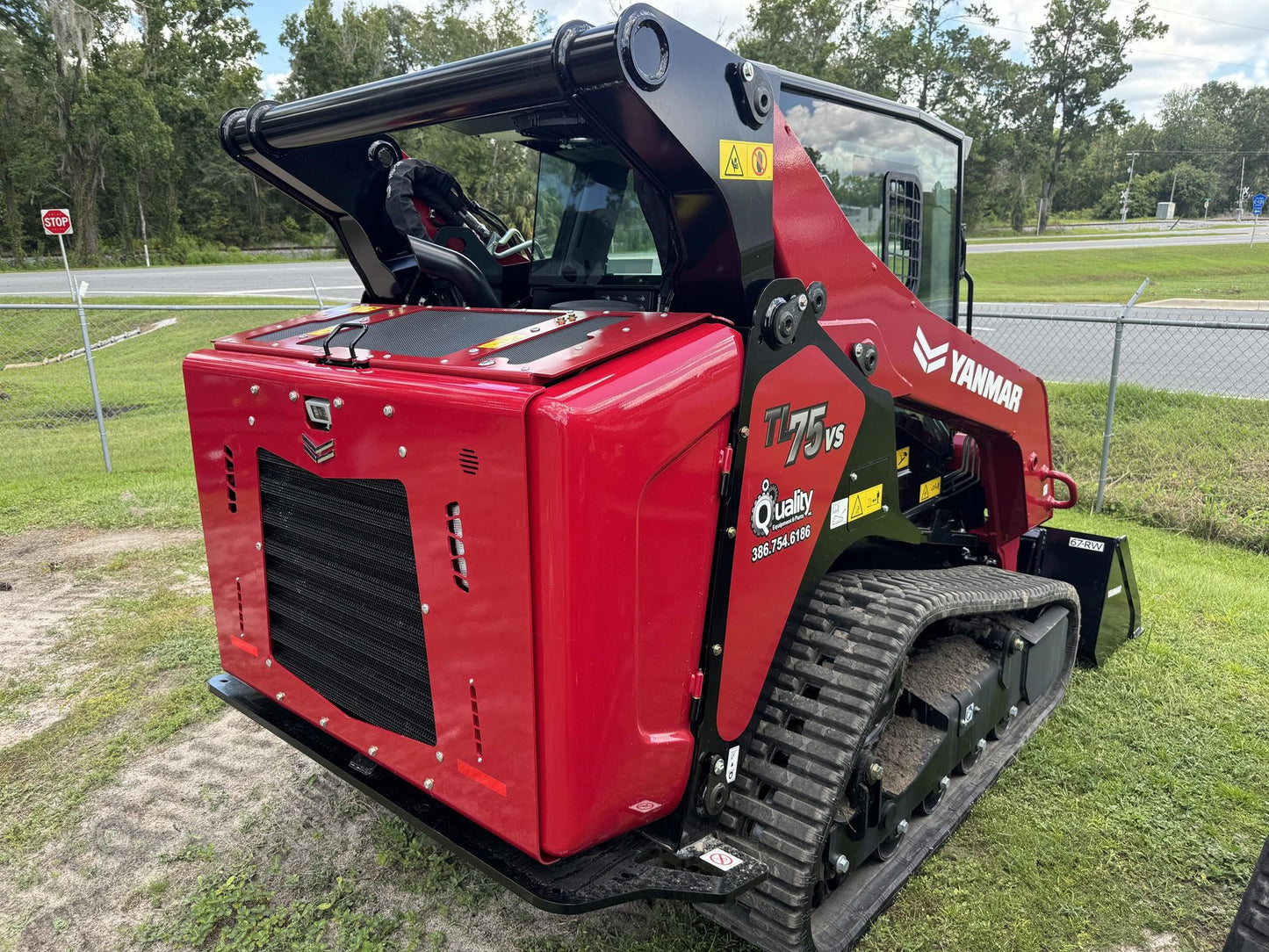

Yanmar Compact Track Loader | Model TL75VS | Hydraulic Flow 21.4-26.7 GPM

Yanmar Compact Track Loader | Model TL75VS | Hydraulic Flow 21.4-26.7 GPM

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Performance: Equipped with a 74-horsepower Yanmar Tier 4 Final diesel engine for robust and efficient operation.
  • Optimal Lift Capacity: With a rated operating capacity of 2,555 lbs (1,159 kg) and a tipping load of 7,300 lbs (3,311 kg).
  • High Lift Height: Achieve greater reach and versatility with a lift height of 10 feet, 6.5 inches (3.2 meters).
  • Hydraulic Flow 21.4-26.7 GPM
View full details

How To Request A Quote

Online pricing not available, Please request a quote:

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Yanmar Compact Track Loader | Model TL75VS | Hydraulic Flow 21.4-26.7 GPM

Ripping It is Partnered with Quality Equipment to provide the best pricing and service for Yanmar

Description

Introducing the TL75VS, a versatile powerhouse that stands out in construction, utility, and rental sectors. Equipped with a 74-horsepower Yanmar Tier 4 Final diesel engine, this machine delivers uncompromising performance and reliability. Its towering lift height and robust 2,550-pound rated operating capacity ensure it excels in heavy-duty tasks with precision and efficiency. The TL75VS is designed to dominate, making even the toughest jobs seem effortless while maintaining the hallmark of Yanmar reliability. Whether on a construction site or in a utility setting, the TL75VS proves to be an invaluable asset, capable of meeting the demands of diverse and challenging environments.

Key Features

  • Powerful Performance: Equipped with a 74-horsepower Yanmar Tier 4 Final diesel engine for robust and efficient operation.
  • Optimal Lift Capacity: With a rated operating capacity of 2,555 lbs (1,159 kg) and a tipping load of 7,300 lbs (3,311 kg), it handles heavy loads effortlessly.
  • High Lift Height: Achieve greater reach and versatility with a lift height of 10 feet, 6.5 inches (3.2 meters).
  • Dual-Speed Travel: Features auto two-speed mode, allowing travel speeds up to 7.5 mph (12.1 kph) for faster job completion.
  • Unmatched Visibility: Enjoy 360-degree visibility from the operator's seat, enhanced by a removable roof hatch for quick exits.
  • Operator Comfort: Designed with a suspended seat and ergonomic controls to reduce operator fatigue and increase productivity.
  • Advanced Technology: Includes a 7-inch color display, SmartAssist telematics for real-time monitoring, and self-leveling technology for precise handling.
  • Durable Construction: Built tough with a heavy-duty frame and components, backed by a 2-year/2,000-hour warranty for peace of mind.
  • Safety Features: Enhanced visibility and safety features ensure operator and job site safety.

Detailed Specifications


Category Specifications
Loader Arms Vertical
Operating Weight (Open ROPS Base) 9,205 lbs
Operating Weight (AWC Cab Base) 9,545 lbs
Ground Pressure at Operating Weight 6.1 psi
Rated Operating Capacity (35% of tipping load) 2,555 lbs
Tipping Load 7,300 lbs
Travel Speed, Maximum 7.5 mph
Type Diesel 4-cylinder, Intercooled Turbo
Model Yanmar 4TN86CHT
Gross Power Rating 74 hp
Displacement 2.1 L
Torque, Peak 195 ft-lb
Cooling System Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner Dual-stage
Emission Controls Meets all U.S. EPA Tier 4 final standards
Track Width 12.6 in.
Length of Track on Ground 60 in.
Ground Contact Area 1,512 in.²
Drive System Two hydrostatic direct drive sprockets controlled by single joystick
Undercarriage Suspension Two independent torsion axles per undercarriage
Pump Capacity, Low/High 21.4 / 26.7 gpm
Max System Pressure, Low / High 3,480 / 3,771 psi
Intermittent Via joystick button
Continuous Via console switch
Flat Faced Couplers 1/2 in.
Cooling System High efficiency side-by-side radiator and oil cooler
Nominal Charge 12 V
Battery 800 CCA
Charging System 80 amp alternator
Outlets 1-12 V port inside operator station
Wiring Pre-wired for all factory-available accessories
Fuel Tank 21.4 gal
Cab ROPS or All-Weather Cab with curved glass door
Seat Mechanical suspension seat with 2-in. seat belt
Controls Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
Engine Speed Standard hand dial operation with foot pedal optional
7-in. Color Machine Display Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages
ROPS ISO 3471
Restraint ISO 6683, SAE J2292, Cal OSHA 1596
FOPS ISO 3449 Level 1 (level 2 optional), emergency roof exit
Forward-facing LED lights 2
Rear-facing LED lights 2
Standard Features Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow
Optional Features All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, rotating magnetic beacon, LED side lights, backup camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control

Manual & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

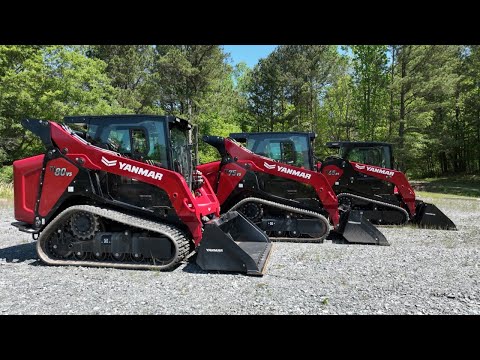

Videos
