YORK

York Landscape Rake | HT & FM Series | Width 96", 108", 120" & 132" | Tine Spacing 1.5" | For Trucks & SUVs

York Landscape Rake | HT & FM Series | Width 96", 108", 120" & 132" | Tine Spacing 1.5" | For Trucks & SUVs

Regular price $6,403.00
Regular price Sale price $6,403.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Wide Width Options: 8, 9, 10, and 11 ft Covers various job sizes with fewer passes.
  • Heavy-Duty Tines: Equipped with 48 heat-treated alloy steel tines, each measuring 5/16"x1¼"x30" with 1-1/2" spacing for effective raking performance.
  • Efficient Raking Width: Offers a minimum raking width of 90" when extended and full angled, extending to 126" for wider coverage.
  • Pneumatic Caster Wheels: Includes two 13/6.5x6 pneumatic caster wheels for smooth operation and easy handling.
  • Weight Capacity: Weighs 710 lbs (with frame) for durability and stability in tough conditions.
View full details

Product Description

York Landscape Rake | HT & FM Series | Width 96", 108", 120" & 132" | Tine Spacing 1.5" | For Trucks & SUVs

DESCRIPTION

Maximize your gravel road, driveway, and landscape maintenance with the York Multimount Landscape Rake Series. From 8 to 11 ft widths, these highly versatile rake sections and truck-mount combinations are engineered to deliver reliable performance and professional results whether you're smoothing surfaces, clearing debris, or prepping terrain.

HT Rake Sections (Models 9048, 9049, 9044) give you modular flexibility, allowing you to add to your existing tow-behind rig or vehicle mount. Meanwhile, Model 6008 transforms your SUV or pickup into a powerful grading machine, complete with electric/hydraulic angling and 35 heat-treated steel tines. For larger vehicles, the 11 ft FM Uni Truck Rakes available with or without frame (007520NF and 7520) attach to universal plow frames, delivering wide coverage and uniform grading.

Built with heavy-duty steel tines (spaced 1½″ apart), flexible angling systems, and optional caster wheels, this Series adapts to your vehicle, jobsite, and seasonal needs. Easy to install and effortless to operate, York’s rakes bring precision and power to every gravel or landscaping job.

Key Features

  • Wide Width Options: 8, 9, 10, and 11 ft Covers various job sizes with fewer passes.
  • Modular HT Section Rakes Add on to existing frames or tow systems (Models 9048, 9049, 9044).
  • Rear-Mount Electric/Hydraulic Rake for SUV Model 6008 converts any 2″ receiver into a grading tool.
  • Universal Truck Mount (FM Series) Models 007520NF and 7520 fit standard plow frames with hydraulic angle cylinders (11 ft width).
  • Heat‑Treated Steel Tines 5/16″ × 1¼″ × 30″ tines spaced at 1½″ for aggressive grading.
  • Full Angle Adjustment Manual or electric/hydraulic control allows reach over full-angle width (up to 126").
  • Optional Caster Wheels Improve float and control over uneven or soft terrain.
  • Lightweight & Durable Frames Ease of transport and long service life for frequent use.
  • Ideal for Gravel Road Maintenance, Driveway Resurfacing, Landscape Prep, and Seasonal Cleanup.

Detailed Specifications

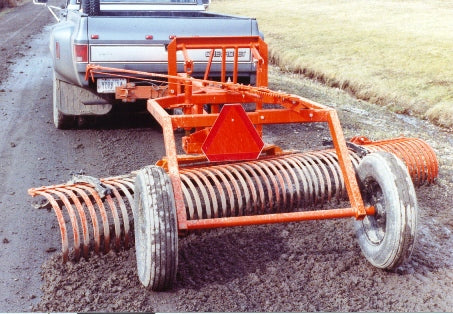

YORK HT Rake Sections

Specification Model 9048 Model 9049
Product Name 8 ft HT Rake Section Only 9 ft HT Rake Section Only
Part Number 9048 9049
Manufacturer YORK YORK
Sweeping Width 8 ft (96") 9 ft (108")
Mount Type Tow-behind rake section Tow-behind rake section
Angle Adjustment Manual / Tilt (no hydraulic) Manual / Tilt (no hydraulic)
Teeth / Tines N/A (section only) N/A (section only)
Tine Specs N/A N/A
Weight Not specified Not specified
Caster Wheels N/A N/A
Additional Features Section only for extension or replacement Section only for extension or replacement
Ideal Use Cases Tow-behind rake extension Tow-behind rake extension
Control System Manual tilt adjustment Manual tilt adjustment

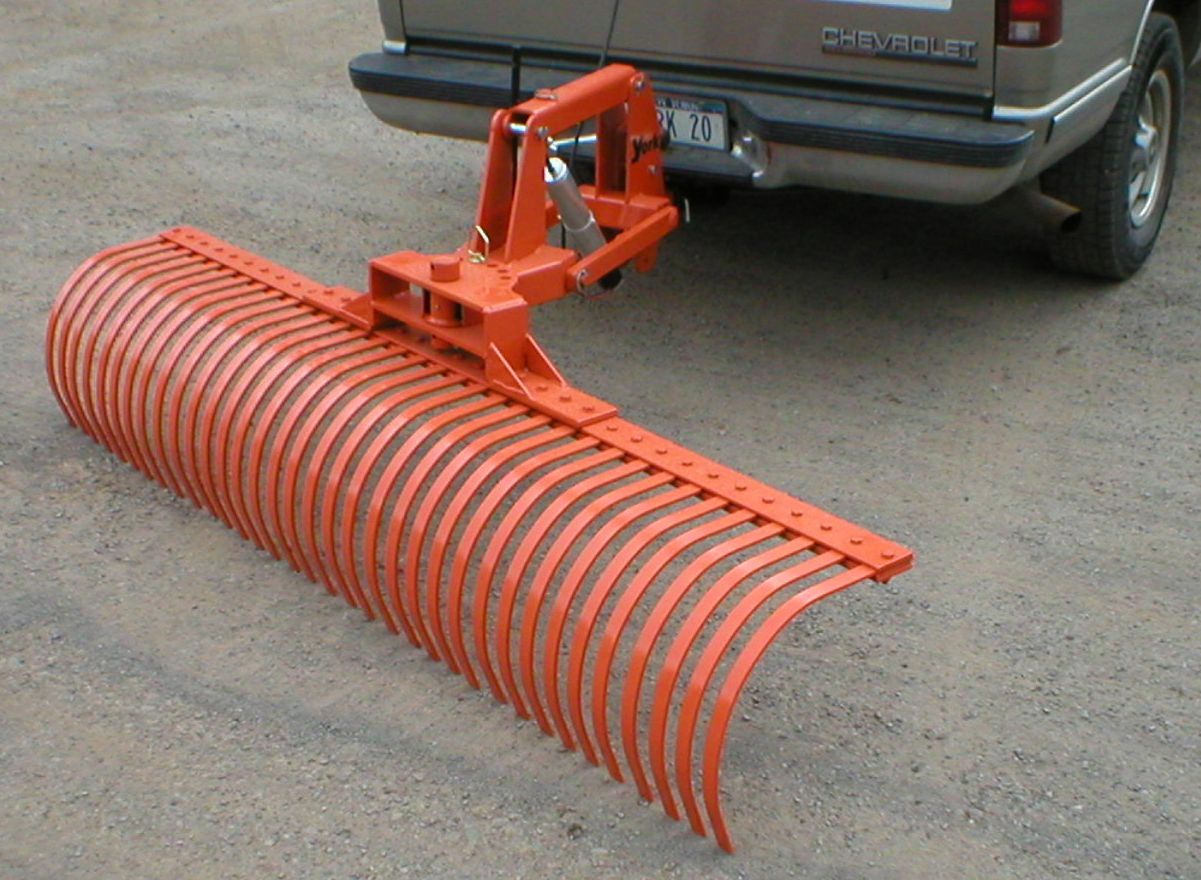

YORK HT Rake Sections & SUV/Pickup Rake

Specification Model 9044 Model 6008
Product Name 10 ft HT Rake Section Only 8 ft Rear Mount SUV/Pickup Rake
Part Number 9044 6008
Manufacturer YORK YORK
Sweeping Width 10 ft (120") 8 ft (Minimum raking width 85")
Mount Type Tow-behind rake section Rear-mount, 2" receiver hitch
Angle Adjustment Manual / Tilt (no hydraulic) Electric control box with 12V connection
Teeth / Tines N/A (section only) 35 Heat-treated alloy steel tines
Tine Specs N/A 5/16" × 1¼" × 30", spaced 1½"
Weight Not specified Approximately 400 lbs
Caster Wheels N/A Optional caster wheels (sold separately)
Additional Features Section only for extension or replacement Integral storage stand included
Ideal Use Cases Tow-behind rake extension Gravel road maintenance, driveways, landscaping
Control System Manual tilt adjustment 12V electric control with quick-connect link

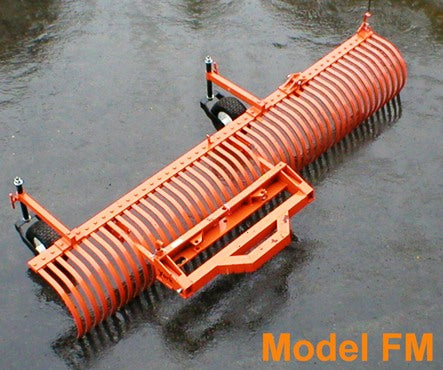

YORK 11 ft FM Uni Truck Rakes

Specification Model 007520NF Model 7520
Product Name 11 ft FM Uni Truck Rake (No Frame) 11 ft FM Uni Truck Rake (With Frame)
Part Number 007520NF 7520
Manufacturer YORK YORK
Sweeping Width 11 ft (132") (Min. raking width 90", extended 126") 11 ft (132")  (Min. raking width 90", extended 126")
Mount Type Truck-mounted, universal plow frame (no frame) Truck-mounted, universal plow frame (with frame)
Angle Adjustment Hydraulic angle cylinders Hydraulic angle cylinders
Teeth / Tines 48 Heat-treated alloy steel tines 48 Heat-treated alloy steel tines
Tine Specs 5/16" × 1¼" × 30", spaced 1½" 5/16" × 1¼" × 30", spaced 1½"
Weight Approximately 710 lbs Approximately 710 lbs
Caster Wheels Two 13/6.5x6 pneumatic caster wheels Two 13/6.5x6 pneumatic caster wheels
Additional Features Attaches to existing snow plow mounting frame Includes full universal plow frame
Ideal Use Cases Landscape maintenance with universal frame setup Landscape maintenance with universal frame setup
Control System Hydraulic control via plow system Hydraulic control via plow system
