Zipwake

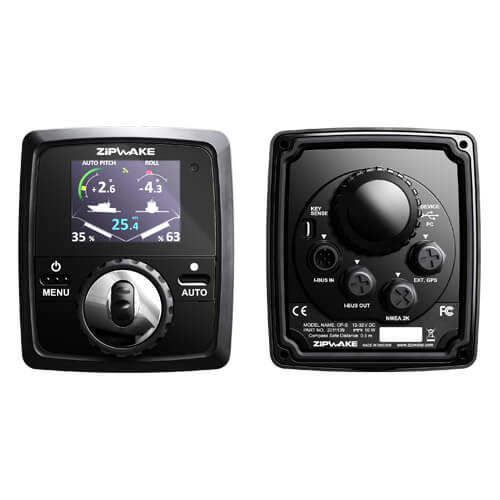

Zipwake Control Panel S with Standard 7M Cable | Model CP S | 2.4" Display

Zipwake Control Panel S with Standard 7M Cable | Model CP S | 2.4" Display

$1,330.00
$1,330.00
Sale Sold out
Customizable
Fast
24/7 Support
  • User-Friendly Design: Intuitive controls with dual control wheels for seamless operation.
  • Fully Automatic System: Integrated GPS, 3D gyro sensors, and motion controller for dynamic pitch and roll correction.
  • Vibrant Display: 2.4" sunlight-readable color TFT with auto-dimming night mode.
  • Rugged Construction: Waterproof design (IP67/IP64) for durability in marine environments.
  • Flexible Connectivity: Compatible with NMEA2000, external GPS, and ignition key systems.
View full details

Product Description

Zipwake Control Panel S with Standard 7M Cable | Model CP S | 2.4" Display

DESCRIPTION

Zipwake’s stylish control panel is carefully designed to be user-friendly and intuitive to allow the driver to focus on the right thing – enjoying the boat ride!

The panel’s two unique control wheels provide easy, quick and intuitive manual control of running trim, heel or heading. However, the system normally operates in automatic control mode, which is enabled by a single press on the AUTO button. In this mode, the built-in high-frequency GPS, 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of uncomfortable and dangerous boat pitch and roll.

The system provides continuous feedback of boat speed, pitch and roll angle, as well as the interceptors´ positions, on a 2.4” sunlight-readable color display. The panel’s waterproof design withstands harsh marine conditions in open boats or on a flybridge. The sockets for connecting peripherals are located on the rear side of the panel. In addition to connectors for the system’s distribution unit and multiple control panels, external GPS and NMEA2000 equipment can be connected. The system can also be connected to the ignition key for automatic system power-on. A waterproof cap conceals the USB interface that allows for future software upgrades and ensures that the Zipwake dynamic trim control system is future-proof.

Key Features

  • Advanced Sensors: Includes a 5 Hz GPS, 3D gyro, and accelerometer for precise control.
  • Dynamic Display: Color TFT with auto-dimming for easy visibility in any lighting condition.
  • Flexible Mounting: Supports flush or surface mounting for installation convenience.
  • USB Upgradable: Stay future-proof with software updates via USB.
  • Durable Design: Rated IP67 (front) and IP64 (back) for weather resistance.

Short facts

  • Fully Automatic
  • Internal GPS & 3D GYRO
  • Waterproof By Design
  • Sunlight Readable
  • Fully automatic - Dynamic pitch and roll control - Steering and turn enhancement
  • Built-in GPS and motion sensors
  • Unique and intuitive 3D controls
  • Sunlight readable color display
  • Instant state user feedback
  • Auto power on/off via ignition key sense
  • Full range of electrical interfaces
  • NMEA 2000
  • Waterproof
  • Auto dimming / night mode
  • Upgradable via USB stick
  • Supports up to 3 additional Control Panels in the system
  • Surface or flush mount
  • Manages installation configurations from 1 up to 6 interceptors


INTERFACES

  • I-BUS IN (CAN bus)
  • I-BUS OUT (CAN bus)
  • NMEA 2000
  • External GPS (NMEA 0183 / RS232 auto baud-rate sensing)
  • Key Sense
  • USB Device Port (Type A)
  • USB Host Port (Type B)

Detailed Specifications

Specification Details
Model CP-S
Display 2.4" Transflective Color TFT, 320 x 240 pixels, Double-sided, Anti-reflection Coated Window
Internal Sensors 5 Hz GPS, 3D Gyro, 3D Accelerometer, Ambient Light
Supply Voltage 12 - 32 V DC
Power Consumption 10 W Max
Operating Temperature -20° to +85°C (-4° to +185°F)
Storage Temperature -40° to +90°C (-40° to +194°F)
Waterproof Rating IP67 (Front) / IP64 (Back)
Compass Safe Distance 0.5 m (1.7 ft)
Compliance CE, FCC
Weight 0.22 kg (0.49 lbs)
Mounting Flush or Surface

In Package

  • Included in Kit Boxes
  • Available as an Accessory
  • Available as a Spare Part

Manuals & Documents

Control panel – Operator’s startup checklist

Control panel – Operating principles
