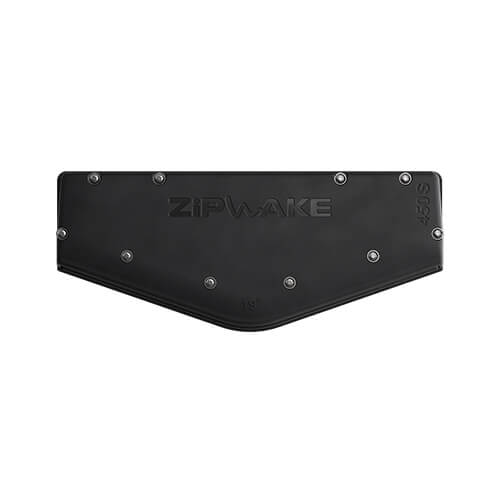

Zipwake Interceptor 450 S-V19 | 19° 17.72" (450mm)
Zipwake Interceptor 450 S-V19 | 19° 17.72" (450mm)
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Zipwake Interceptor 450 S-V19, 19° 17.72" (450mm)
DESCRIPTION
Series S constitutes a product family of four straight and four V-shaped interceptors. This first-ever modular design made for mass production makes the interceptors durable, affordable and perfectly adapted to any planing or semi-planing boat between 6 m and 18 m (20-60ft).
All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of a calibration-free submersible electric servo within the interceptor unit. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.
Installation is made easy with an integral mounting plate and the option of a concealed or above waterline, self-sealing, thru-hull cable fitting. Each interceptor comes with the thru hull cable fitting, cable covers and a practical drill template.
Key Features
- True outboard mount, modular design and fast actuation
- Integrated mounting plate and no corrosive materials
- Thru-hull fitting options either above waterline or concealed behind interceptor
- Submersible servo units are brushless 12-24V DC servo motor, high-precision positioning, calibration free, durable and accessible
Short Facts:
- Outboard Mount
- Modular Design
- Fast Actuation
-
Calibration Free
Chractristics
- True outboard mount
- Modular design
- Fast actuation
- Submersible servo units
- Brushless 12-24V DC servo
- Calibration free
- High-precision positioning
- Durable and accessible
- Integrated mounting plate
- Thru hull fitting options - Above waterline - Concealed behind interceptor
- No corrosive materials
- Straight, V-shaped, Chine and Intermediate models
Detailed Specifications
| Specification | Details |
|---|---|
| Model | IT450-S V19 |
| Length | 450 mm (18 in) |
| Weight | 3.4 kg (7.5 lbs) |
| Max Boat Speed | 60 knots |
| Blade Stroke | 30 mm (1.2 in) |
| Blade Rate | 20 mm/s (0.8 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Length | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 14.5 mm (0.57 in) |
| Supply Voltage | 12-32 V DC |
| Power Consumption | 25 W max |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP68, 5 m (16 ft) |
| Compliance | CE, FCC |
