Zipwake

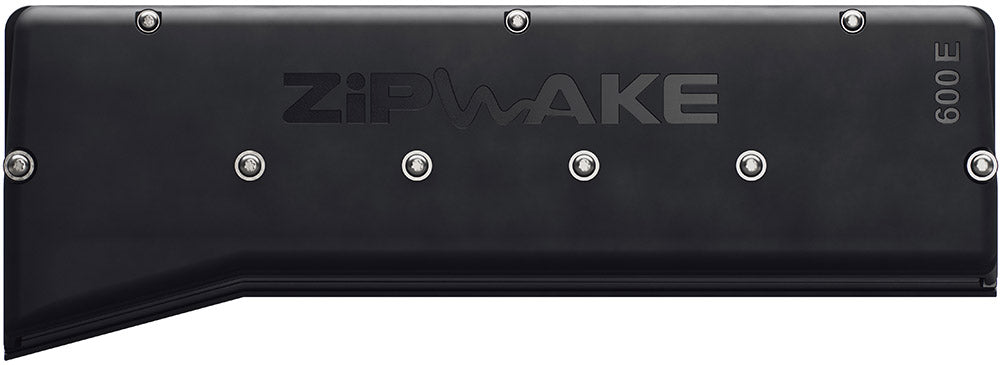

Zipwake Interceptor 600 E Chine Port w Series E | Model IT 600 E Chine Port

Zipwake Interceptor 600 E Chine Port w Series E | Model IT 600 E Chine Port

$4,110.00
$4,110.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Outboard Mount Design: Maximizes pitch and roll control by leveraging outboard hull surfaces.
  • Modular and Durable: Integrated mounting plate with no corrosive materials for long-lasting performance.
  • Submersible Servo Units: Brushless 12-24V DC motors with high-precision, calibration-free operation.
  • Fast Actuation: 60 mm blade stroke with an impressive rate of 40 mm/s for quick adjustments.
  • Auto Cleaning Functionality: Selectable cleaning cycle prevents fouling inside the interceptor.
View full details

Product Descripiton

Zipwake Interceptor 600 E Chine Port w Series E | Model IT 600 E Chine Port

DESCRIPTION

Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors. Chine interceptors are particularly useful when transom space is limited abeam of swim platform lifts, waterjets, surface drives or outboards.

Key Features

  • Optimal Performance: Outboard mount maximizes lift generation, matching the performance of larger inboard interceptors.
  • Quick Adjustments: Fast blade actuation for responsive pitch and roll stabilization.
  • Calibration-Free Design: Simple, accurate operation with no need for manual calibration.
  • Auto Cleaning Cycle: Prevents fouling inside the interceptor to ensure consistent performance.
  • Durable Construction: Built with no corrosive materials and equipped with an integrated mounting plate.
  • Versatile Fitting Options: Thru-hull cable fitting above the waterline or concealed behind the interceptor.

Short Facts:

  • Outboard Mount
  • Modular Design
  • Fast Actuation
  • Calibration Free

Chractristics

  • True outboard mount
  • Modular design
  • Fast actuation
  • Straight, tunnel and chine models
  • Integrated mounting plate
  • Thru hull fitting options - Above waterline - Concealed behind interceptor
  • Submersible servo units
  • Brushless 12-24V DC servo motor
  • Durable and accessible
  • Calibration free
  • Auto Cleaning - Selectable periodic cleaning cycle - Prevents fouling inside the interceptor
  • No corrosive materials

Detailed Specifications

Name Description
Model IT 600 E Chine Port
Max Boat Speed 50 knots
Blade Stroke 60 mm (2.4 in)
Blade Rate 40 mm/s (1.6 in/s)
Thru-Hull Cable Fitting Concealed or above waterline
Servo Actuator SU-E
Cable Material PUR
Connector Diameter 0.57" (14.5 mm)
Cable Length 10' (3 m), extendable up to 20' (6 m)
Voltage 12-32VDC
Power Consumption 25W max
Ingress Protection IP68
Operating Temperature +32° to +104°F (0° to +40°C)
Storage Temperature -40° to +194°F (-40° to +90°C)
Compliance CE, FCC
Approximate Ship Weight (lbs) 17
