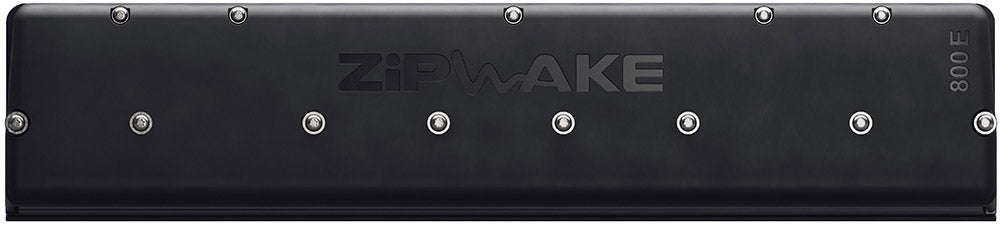

Zipwake Interceptor 800 E with Cable 3 Series E
Zipwake Interceptor 800 E with Cable 3 Series E
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Zipwake Interceptor 800 E with Cable 3 Series E
DESCRIPTION
Series E is a family of large, fast-acting interceptors that includes three straight, three tunnel and two chine models. Their blade rate and stroke are 40 mm/s and 60 mm respectively.
The large, modular design made for mass production means the interceptors are durable, affordable and particularly well adapted to any planing or semi-planing boat between 50-100 ft. All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of two calibration-free submersible electric servos in the interceptor unit.
Natural water cooling provides excellent working conditions for the brushless DC servo motors, which run on 12-32 volts.Installation is made easy with an integral mounting plate and the option of a concealed or above- waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable as shown below. Each interceptor comes with the thru-hull cable fitting, cable cover and a practical drill template.
Key Features
- High Performance for Large Boats: Designed to enhance control and efficiency for vessels up to 100 feet.
- Fast and Accurate Actuation: 60 mm blade stroke with a rate of 40 mm/s for real-time adjustments.
- Durable and Reliable: Built with IP68-rated components to resist water ingress and minimize downtime.
- Low Maintenance: Calibration-free setup and auto-cleaning features reduce maintenance needs.
- Flexible Setup: Includes self-sealing thru-hull cable fittings for concealed or above-waterline installations.
- Energy Efficient: Operates on a 12-32 VDC power supply with a maximum power consumption of 25W.
Short Facts
- Outboard Mount
- Modular Design
- Fast Actuation
-
Calibration Free
Chractristics
- True outboard mount
- Modular design
- Fast actuation
- Submersible servo units
- Brushless 12-24V DC servo
- Calibration free
- High-precision positioning
- Durable and accessible
- Integrated mounting plate
- Thru hull fitting options - Above waterline - Concealed behind interceptor
- No corrosive materials
- Straight, V-shaped, Chine and Intermediate models
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | Interceptor 800 E with Cable 3 |
| Max Boat Speed | 50 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable to 20' (6 m) |
| Voltage | 12-32 VDC |
| Power Consumption | 25 W max |
| Ingress Protection | IP68 |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Approximate Ship Weight | 21 lbs |
