Product Description
Zipwake Kit Box 300 S 11.81" (300mm)
DESCRIPTION

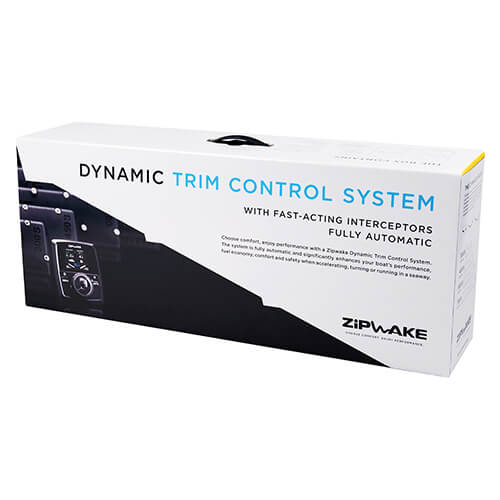

A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable and 1 control panel with 7m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.
Key Features
- Complete Kit: Includes all necessary components for easy installation and immediate operation.
- Advanced Trim Control: Eliminates pitch and roll dynamically to enhance safety and comfort.
- Optimized Fuel Efficiency: Reduces wave resistance to lower fuel consumption.
- Modular and Expandable: Supports up to six interceptors for versatile applications.
- Durable Design: Impact-resistant construction with IP68 ingress protection ensures longevity.
- Precision Technology: GPS, 3D-Gyro, and 3D-Accelerometer deliver real-time adjustments.
- Zipwake is a fully automatic and active trim control system
- Dynamically eliminates uncomfortable and dangerous boat pitch and roll
- Automatically minimizes wave resistance and saves fuel
- Built-in quality, simplicity and easy expansion, yet affordable
- 5-10 times faster than conventional trim tabs
- Built-in GPS, 3D-Gyro and 3D- Accelerometer
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | Kit Box 300 S (300 mm) |
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2" (30 mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable to 20' (6 m) |
| Voltage | 12-32 VDC |
| Power Consumption | 25 W max |
| Ingress Protection | IP68, submersible to 16' (5 m) |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Certifications | CE, FCC |
| Approximate Ship Weight | 16 lbs |
Manuals & Documents
Product Specifications Document
