Zipwake Kit Box 400 E 15.74" (400mm)
Zipwake Kit Box 400 E 15.74" (400mm)
Regular price
$6,430.00
Regular price
Sale price
$6,430.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Zipwake Kit Box 400 E 15.74" (400mm)
DESCRIPTION

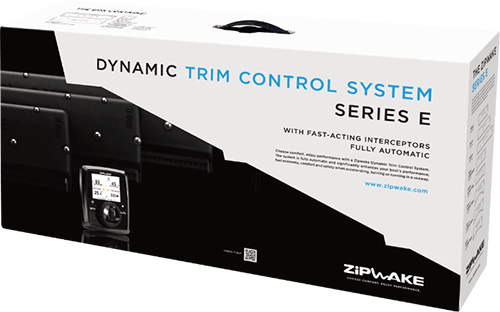

A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 6m power cable, 1 control panel with 15m standard cable). Any base installation can be expanded with one center-mounted Series E interceptor or up to two Series S interceptors, without any need for additional connectors or power supply.
Key Features
- Complete System: Includes all parts for a fully operational trim control solution.
- Fast and Efficient Actuation: Quickly stabilizes the vessel with responsive blade movement.
- Fuel-Saving Technology: Automatically adjusts to minimize wave resistance.
- Expandable Capability: Compatible with one Series E center-mounted interceptor or two Series S interceptors.
- Durable Construction: Built to withstand impact and water ingress with IP68-rated materials.
- Easy Installation: Comes with integral mounting plates and pre-configured cables.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | Kit Box 400 E (400 mm) |
| Blade Stroke | 2.4" (60 mm) |
| Blade Rate | 1.6 in/s (40 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Material | PUR |
| Cable Lengths | Interceptors: 3m; Distribution Power: 6m; Control Panel: 15m |
| Voltage | 12-32 VDC |
| Power Consumption | 25 W max |
| Ingress Protection | IP68 |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Certifications | CE, FCC |
Manuals & Documents
Product Specifications Document
