Zipwake Kit Box 450 S 17.72" (450mm)
Zipwake Kit Box 450 S 17.72" (450mm)
Regular price
$3,500.00
Regular price
Sale price
$3,500.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
DESCRIPTION

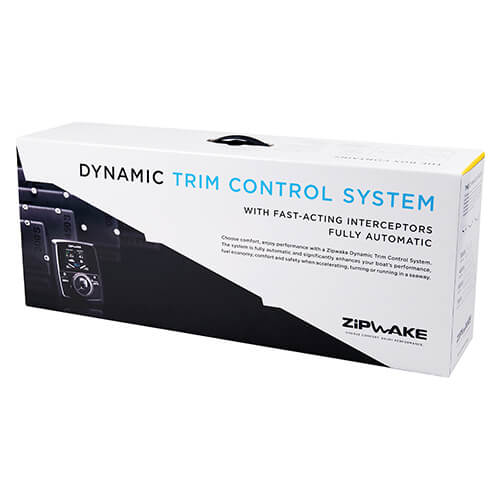

A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable and 1 control panel with 7m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.
Key Features
- Automatic Trim Control: Actively eliminates pitch and roll for smoother navigation.
- Fuel Efficiency: Reduces wave resistance to improve fuel savings.
- Fast Response Time: Operates 5-10 times faster than traditional trim tabs.
- Expandable System: Supports up to six Series S interceptors for tailored configurations.
- Integrated Technology: Built-in GPS, 3D-Gyro, and Accelerometer ensure precise adjustments.
- High Durability: Certified with IP68 ingress protection and operational in extreme conditions.
- Zipwake is a fully automatic and active trim control system
- Dynamically eliminates uncomfortable and dangerous boat pitch and roll
- Automatically minimizes wave resistance and saves fuel
- Built-in quality, simplicity and easy expansion, yet affordable
- 5-10 times faster than conventional trim tabs
- Built-in GPS, 3D-Gyro and 3D- Accelerometer
Detailed Specification
| Feature | Details |
|---|---|
| Interceptor Length | 450mm (17.72 inches) |
| Certifications | CE, FCC |
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2 inches (30mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector Type | M12 5-pin circular |
| Connector Diameter | 0.57 inches (14.5mm) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Ingress Protection | IP68 (16 feet/5 meters) |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| System Weight | Approx. 19 lbs |
In Package
- 2x 450mm straight interceptors with 3m cables and cable covers.
- 1x distribution unit with 4m power cable.
- 1x control panel with a 7m standard cable.
- User manual and installation guide.
