Zipwake Kit Box 450 S for integration 17.72" (450mm)
Zipwake Kit Box 450 S for integration 17.72" (450mm)
Regular price
$3,940.00
Regular price
Sale price
$3,940.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
DESCRIPTION

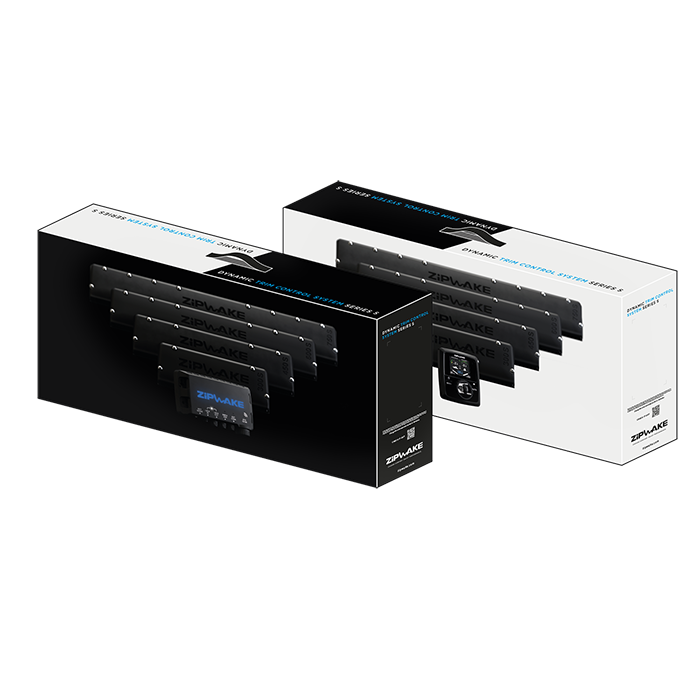

A Kit Box includes all parts needed to install a Dynamic Trim Control System with one pair of fast-acting straight interceptors (2x interceptors with 3m cable and cable covers, 1 distribution unit with 4m power cable and 1 control panel with 7m standard cable). Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.
Key Features
- Zipwake is a fully automatic and active trim control system
- Dynamically eliminates uncomfortable and dangerous boat pitch and roll
- Automatically minimizes wave resistance and saves fuel
- Built-in quality, simplicity, and easy expansion, yet affordable
- 5-10 times faster than conventional trim tabs
- Built-in GPS, 3D-Gyro and 3D- Accelerometer
Detailed Specifications
Name |
Description |
|---|---|
| Max Boat Speed | 60 knots |
| Blade Stroke | 1.2" (30mm) |
| Blade Rate | 0.8 in/s (20 mm/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-S |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 0.57" (14.5 mm) |
| Cable Length | 10' (3 m), extendable up to 20' (6 m) |
| Voltage | 12-32VDC |
| Power Consumption | 25W max |
| Operating Temperature | +32° to +104°F (0° to +40°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Compliance | CE, FCC |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 21 |
