Product Description
DESCRIPTION
SEAMLESS INTEGRATION
Create your perfect set-up. The Integrator Module seamlessly connects the Zipwake system to multiple MFDs from different manufacturers – and even connects wirelessly to smart devices – keeping dashboards free of clutter. But it also offers the flexibility of connecting up to 3 control panels for operation via control wheels in addition to touch screens. A CAN interface enables further external system integration.
WIRELESS CONNECTIVITY
For even greater control, the Integrator Module’s wireless interface lets you configure, operate, monitor, and update the system wirelessly via the Zipwake app on your smartphone or tablet.
EASY TO INSTALL – ANYWHERE

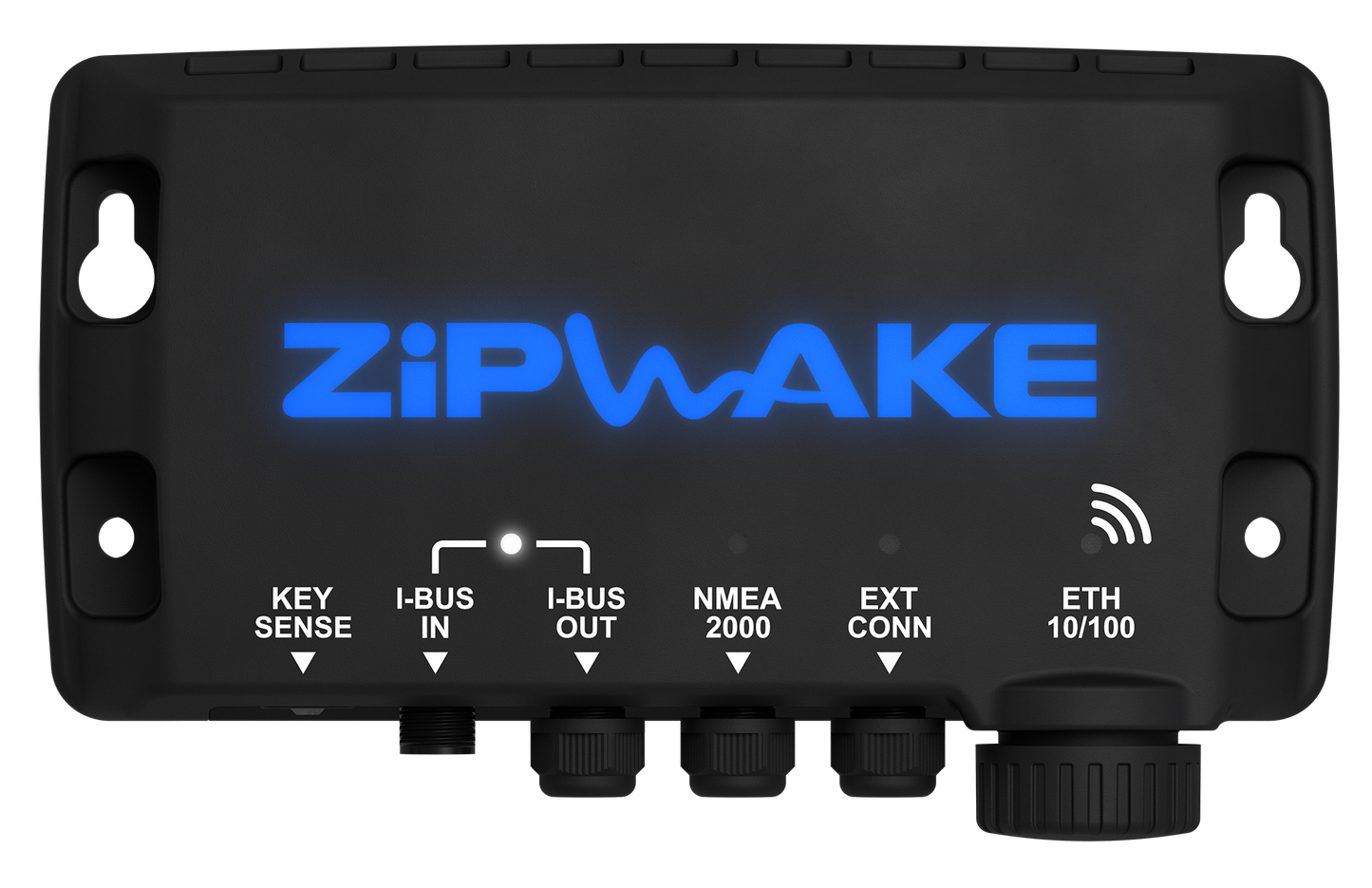

Just slightly bigger than a postcard, the discreet Integrator Module is easy to install behind the helm/dash, on the flybridge or in the engine room. It’s waterproof and comes with a special ethernet connector collar that makes sealing standard ethernet cables easy. A single cable connects the unit to an MFD.
Key Features
- Fully automatic dynamic pitch and roll control
- Steering and turn enhancement
- Motion sensors and magnetic compass
- Instant state user feedback
- Auto power on/off via ignition key sense
- Waterproof design
- RGB Led status indicators for each interface
- Wireless upgradable via smartphones/tablets
- Supports up to three additional Control Panels in the system
- Compatible with all Zipwake system components
- Manages installation configurations from 1 up to 6 Series-E dual-servo interceptors or any mix with single-servo interceptors
- Allows configuration of interceptor pair function
- Monitored and/or controlled from external devices like MFD/Smartphones/Tablets and Plotters via NMEA 2000 interface
Detailed Specificaitons
General Specifications
| Feature | Details |
|---|---|
| Voltage | 12-32VDC |
| Power Consumption | 4.0W |
| Operating Temperature | -4° to +185°F (-20° to +85°C) |
| Storage Temperature | -40° to +194°F (-40° to +90°C) |
| Ingress Protection Rating | IP65+ |
| Compliance Certifications | CE, FCC, SAE J1171 Ignition Protected |
Connectivity Specifications
| Interface | Details |
|---|---|
| Wireless Interface | Zipwake app for smartphones/tablets |
| CAN Interface | External system integration |
| NMEA 2000 Compatibility | Monitoring/control via MFD/Plotters |
| Ethernet Connection | Special connector collar for sealing |
System Support Specifications
| Feature | Details |
|---|---|
| Control Panels Supported | Up to 3 additional panels |
| Interceptor Support | 1-6 Series E dual-servo interceptors or mixed configuration |
In Package
- Zipwake MFD Integrator Module.
- Waterproof ethernet connector collar.
- User manual with installation and configuration guide.
Manuals & Documents
Installation Guide
Specifications Document S Series
Specifications Documents E Series
