Product Description

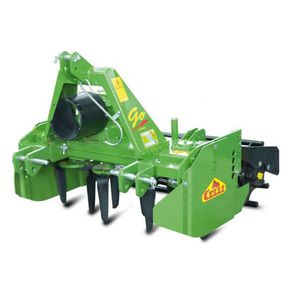

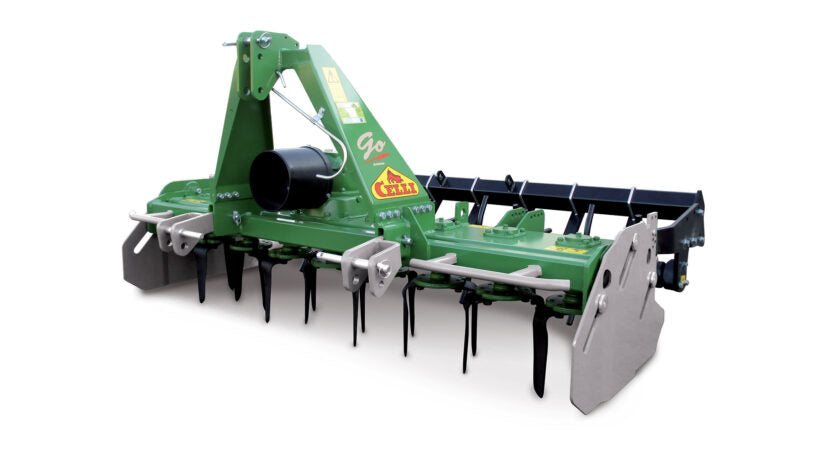

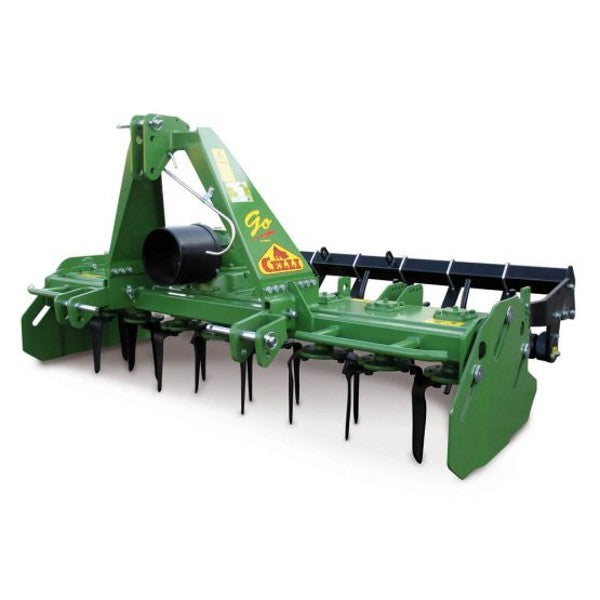

Celli Fixed Power Harrow With Cage Roller | 39" - 118" Working Width | 30-130HP | For Tractor
Included Options:
- Adjustable Tine Depth Control: Customize the cutting depth to suit different soil types.

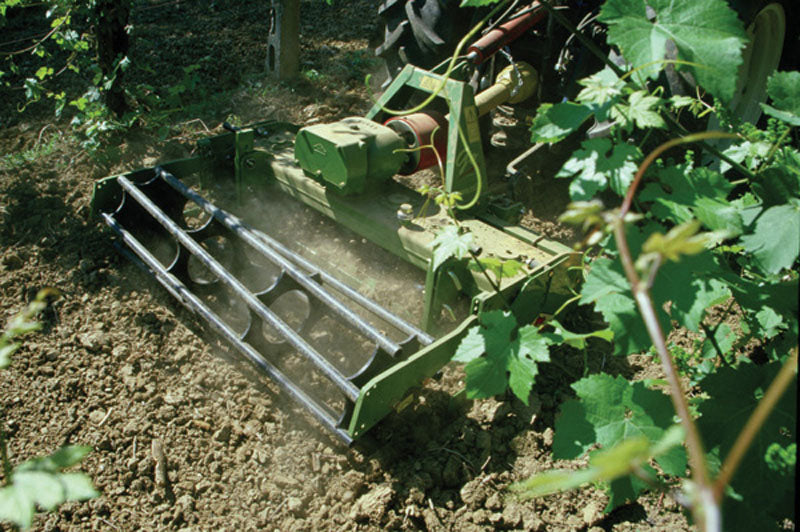

- Additional Rear Cage Roller: For enhanced soil finish and structure.
- High PTO Position Gearbox: Fits tractor PTO heights of 55-65 cm (available on select models).
DESCRIPTION

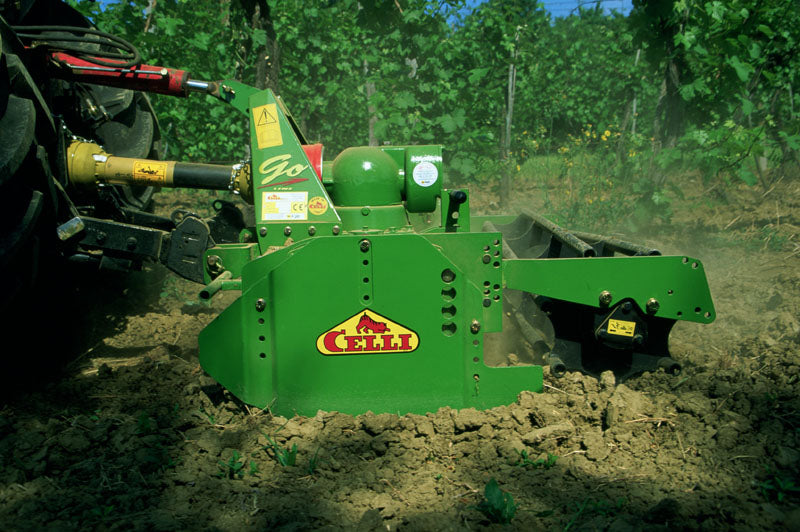

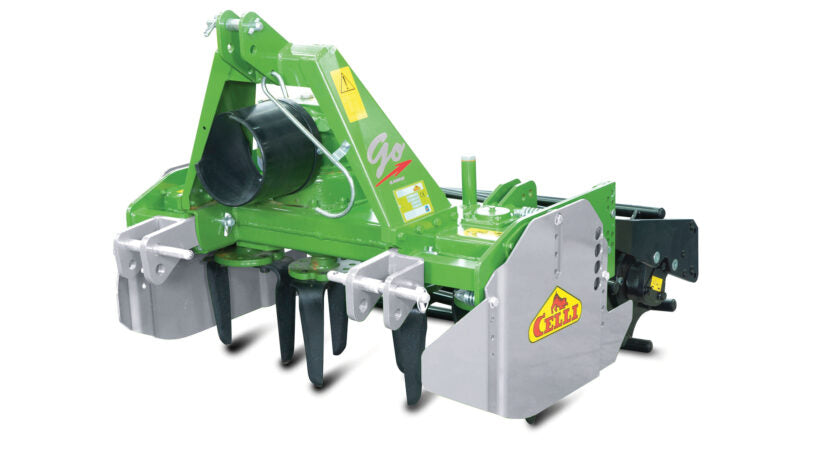

GO, The Celli fixed power harrow is made for low power tractors that work in deep soil and in orchards and vineyards. It prepares seedbeds, eliminates soil compacting and varies the degree of soil finishing according to specific needs All standard machines are supplied with low PTO position gearbox (to fit tractors with PTO height between 45 and 55 cm) except for model 250, supplied with high PTO position gearbox (to fit tractors with PTO height between 55 and 65 cm). Technical note The bar, provided on request, is adjusted with pins or screws. It can be set to several positions, modifying the distance from the tines and the work angle. This adjustment allows an adequate setting in all working conditions, thus minimizing power absorption.
With working widths from 39.3" to 118" and varying horsepower compatibility, the Celli Power Harrow is suitable for a wide range of tractor sizes and agricultural tasks, making it a versatile and reliable tool for farmers, landscapers, and agricultural workers.
Applications
- Orchard and Vineyard Soil Preparation: Ideal for creating a smooth, level seedbed in confined orchard rows.
- Deep Soil Cultivation: Breaks up compacted soil, enhancing root penetration and water infiltration.
- Seedbed Preparation: Provides a refined finish suitable for planting.
- Vegetable and Row Crop Fields: Great for preparing large fields with minimal soil compaction.
Key Features
- Wide Range of Working Widths: Select models from 39.3" to 118" wide, accommodating various field sizes and tractor types.

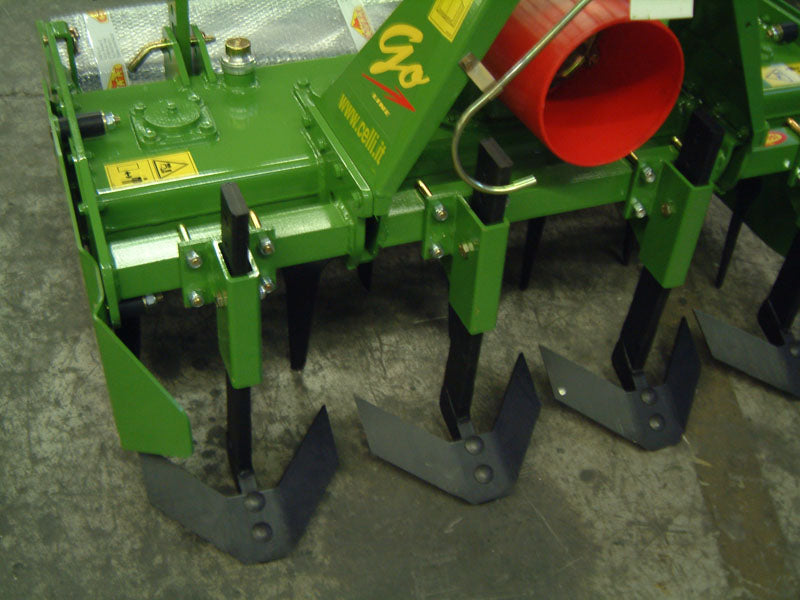

- Adjustable Depth and Leveling: Features 90x10x260 mm tines for deep soil tillage up to 26 cm and adjustable leveling roller.
- Optimized Power Usage: PTO speeds of 540 RPM with a gear reduction to 319 RPM for efficient soil engagement.
- Built-In Safety Mechanisms: Equipped with a drive shaft shear bolt safety device and mobile side plates.
- Standard & Optional Configurations: Multiple adjustments for tines and cage roller allow for different soil conditions and crop needs.
Detailed Specificaitons
| Model | Working Width | Tractor HP (Min-Max) | Tines | PTO Speed | Category | Depth |
|---|---|---|---|---|---|---|
| MINIGO 100 | 39.3" | 30-80 HP | 90x10x260 mm | 540 RPM | Cat. 1 | 26 cm |
| MINIGO 125 | 49.2" | 35-80 HP | 90x10x260 mm | 540 RPM | Cat. 1 | 26 cm |
| MINIGO 150 | 59" | 40-80 HP | 90x10x260 mm | 540 RPM | Cat. 1 | 26 cm |
| GO 200 | 78.8" | 50-80 HP | 90x10x260 mm | 540 RPM | Cat. 2 | 26 cm |

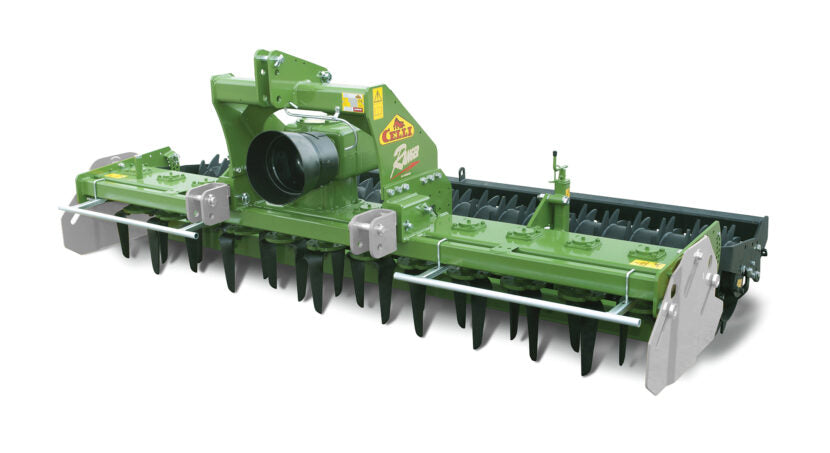

| RANGER 225 | 88.5" | 75-130 HP | 90x10x260 mm | 540 RPM | Cat. 2 | 26 cm |
| RANGER 250 | 98.4" | 80-130 HP | 90x10x260 mm | 540 RPM | Cat. 2 | 26 cm |
| RANGER 300 | 118" | 85-130 HP | 90x10x260 mm | 540 RPM | Cat. 2 | 26 cm |
Standard Version
- High-tensile welded box frame with reinforced construction
- Tines: 90x10x260 mm, with six per flange
- Rear Leveling Roller: Adjustable via pin for precise depth control
- Hitch: Compatible with Category 1 or 2 3-point hitch
- Transmission: Side gear transmission for smooth operation
- Safety Features: Shear bolt safety device on the drive shaft
- PTO Requirements: 540 RPM at 319 RPM gear reduction
- Additional Attachments: Swinging lower hitches and adjustable side plates
- Colors: Standard in Charcoal RAL7021 and Red RAL3020
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

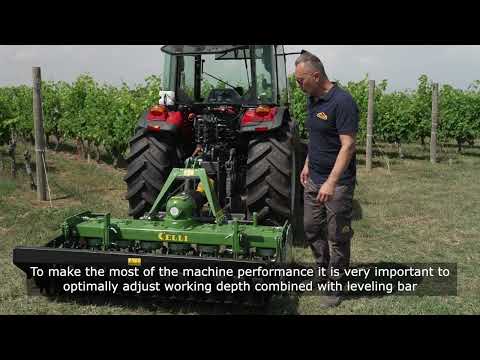

Videos
