Product Description

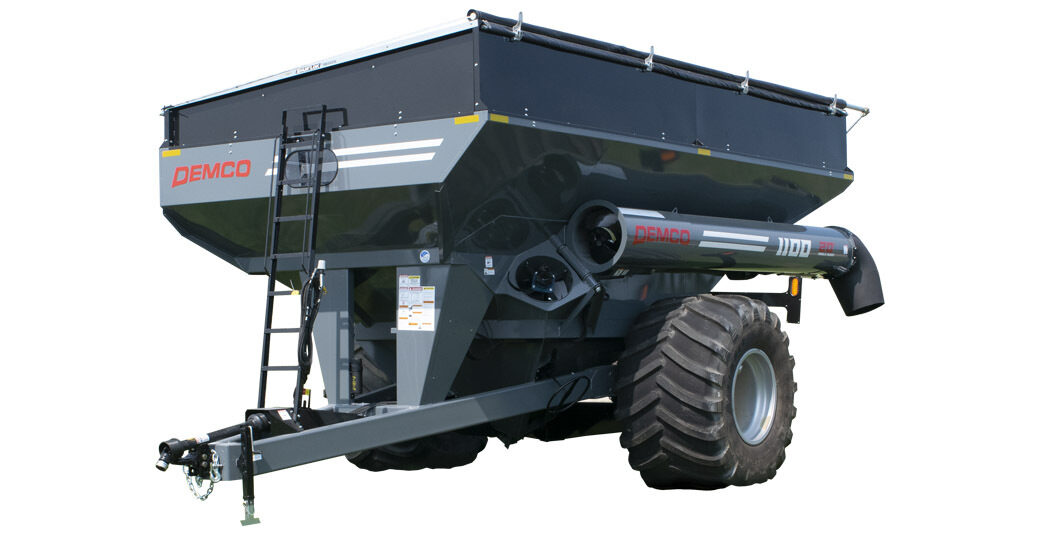

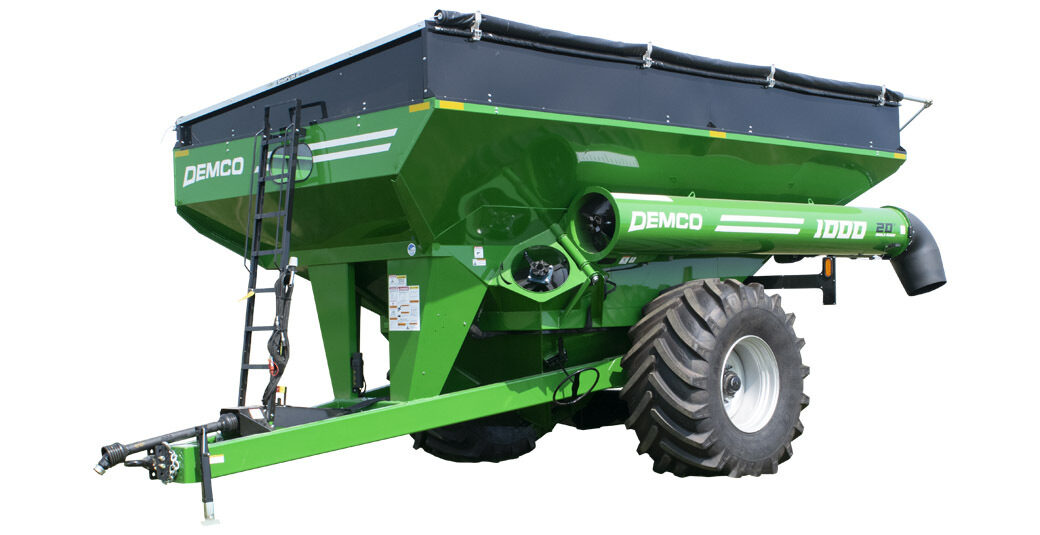

Demco Single Auger Grain Cart | Model 1000 & 1100 | Total Weight 12,920 To 13,110 lbs | Horsepower 175+ HP | For Tractors
DESCRIPTION

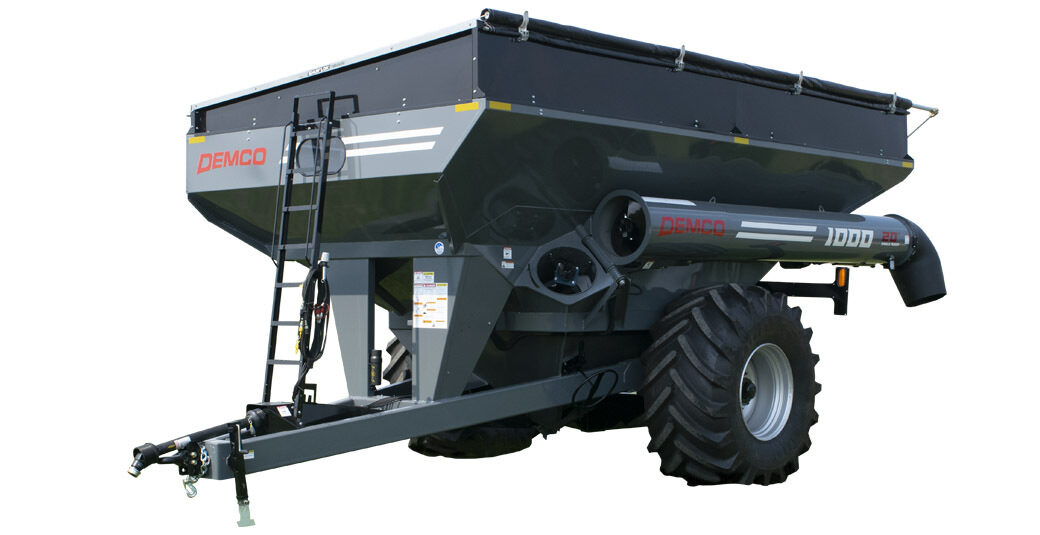

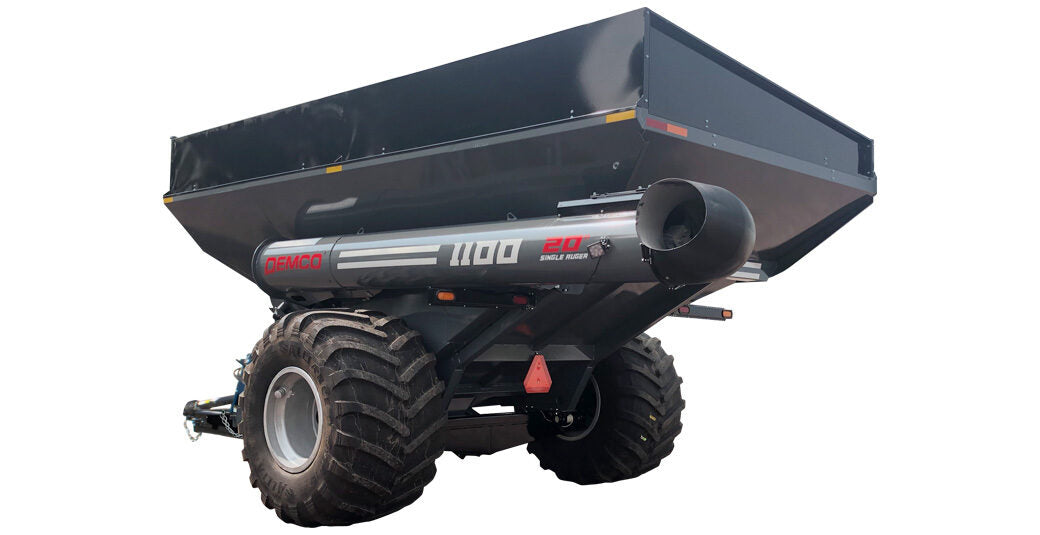

The Demco Single Auger Grain Cart, available in 1000 and 1100 bushel capacities, is engineered to support large-scale farming needs with unmatched efficiency. Featuring a 20” balanced auger with 3/8” Ultraflyte flighting, this cart ensures rapid unloading up to 530 bushels per minute. Reflective decals and LED lights enhance safety during day and night operations, while the automatic reset clutch protects the PTO, guaranteeing durability and ease of use.
Designed with rugged construction and adjustable features, this grain cart is compatible with Category 4 and 5 hitches, making it versatile across different tractor models. An optional 5-point scale system provides precise monitoring of load capacity, offering ease of tracking and inventory management. Built to withstand demanding conditions, the Demco Single Auger Grain Cart is the reliable partner for effective grain handling.
Key Features
- Available in 1000 and 1100 Bushel Capacities (Heaped: 1100 To 1200 Bushels).
- Compatible with Tractors 175+ HP.

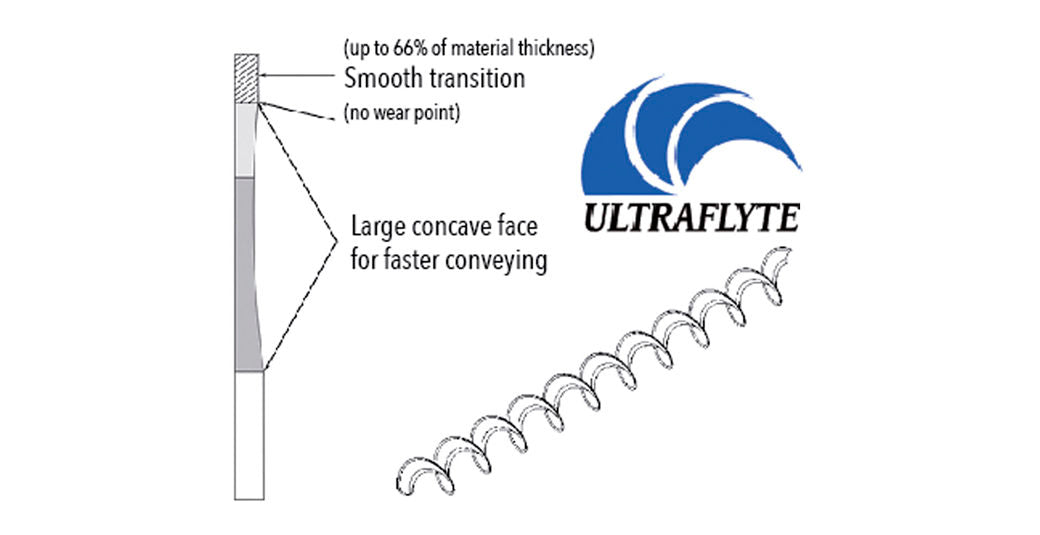

- 20" Balanced Auger with UltraFlyte Flighting for faster unloading.
- Up to 530 Bushels per Minute Unload Rate.

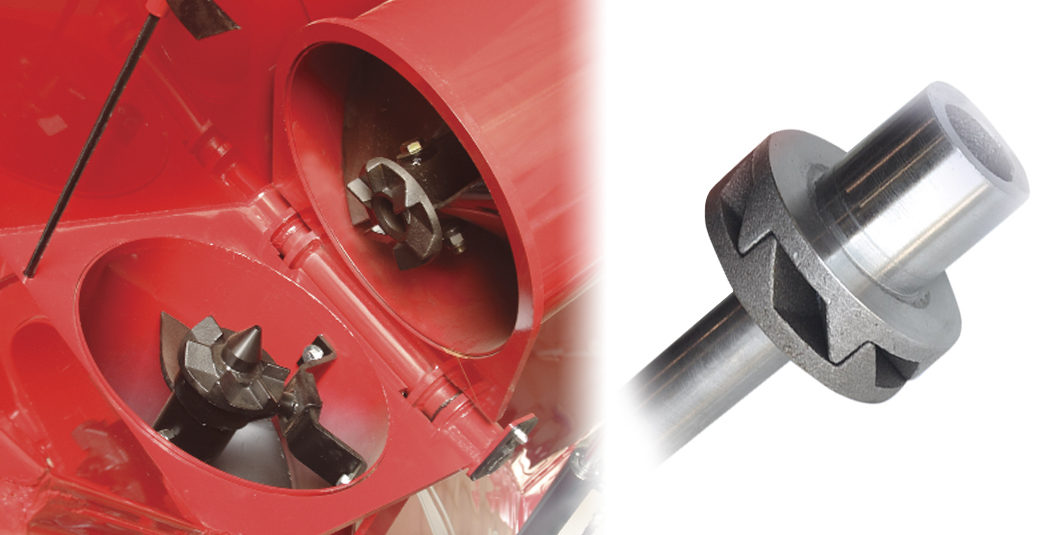

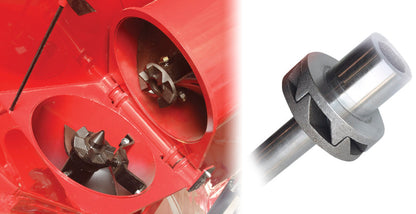

- Posi-Drive Coupler eliminates shock and noise during engagement.
- Adjustable Austempered Cast Hitch fits Category 4 or 5 drawbars.
- Welded Box Construction with Silicone-Sealed Seams for corrosion resistance.
- LED Tail, Turn Signal, and Auger Spotlight for nighttime visibility.
- Tube and Truss Frame with Adjustable Axle.
- Reflective Decals for high visibility.
- 1¾" – 1000 RPM PTO with automatic reset cut-out clutch.
- Optional Hydraulic Drive Kit (requires 70 GPM max oil flow).

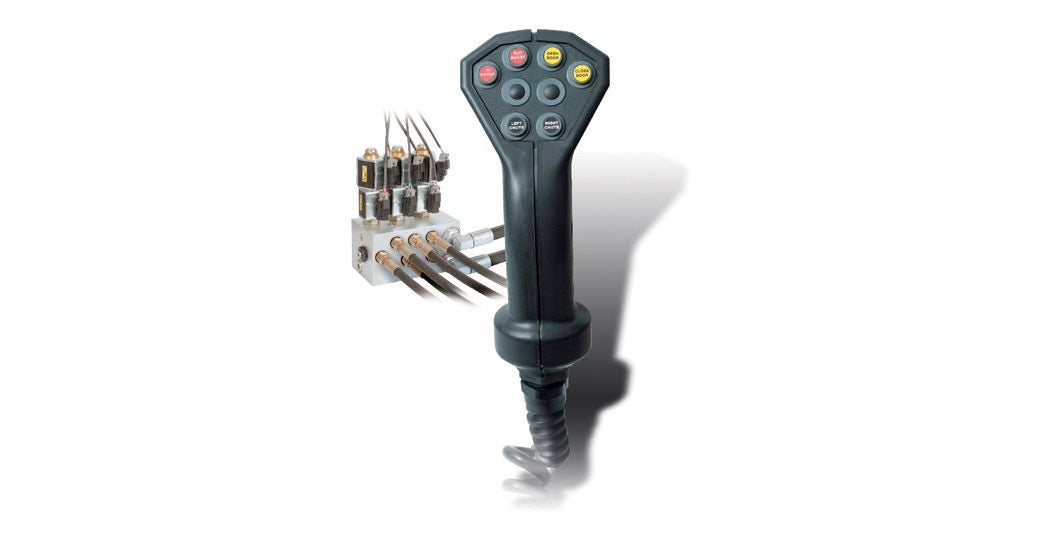

- Optional Pendant Control for auger fold, spout adjust, and gate operation.
- Optional Scale Kits, Roll Tarp, and Track Systems (Camso or Soucy).

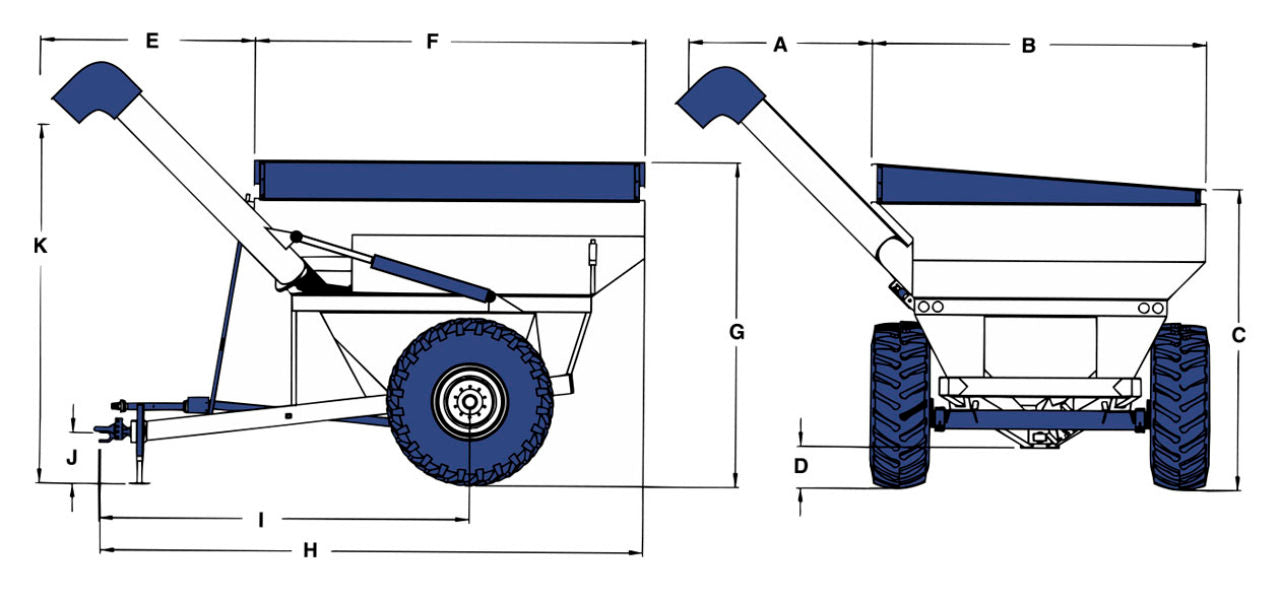

Detailed Specifications
| Feature | 1000SA |
|---|---|
| Level Capacity | 1000 Bushels |
| Heaped Capacity | 1100 Bushels |
| Auger Diameter | 20" |
| Unload Rate | 530 bu/min |
| Tractor HP Required | 175+ HP |
| Tongue Weight (Empty) | 1180 lbs |
| Tongue Weight (Loaded) | 4500 lbs (est.) |
| Total Weight (Wheels/Tires/Tarp) | 12,920 lbs (est.) |
| Total Weight (Tracks/Tarp) | 19,200 lbs (est.) |
| Ground Clearance | 16" |
| Transport Width (w/ 1050 tires) | 15' |
| Box Length | 21'8" |
| Total Length | 26'8" |
| Auger Reach (Side/Front) | 8'11" / 5'8" |
| Feature | 1100SA |
|---|---|
| Level Capacity | 1100 Bushels |
| Heaped Capacity | 1200 Bushels |
| Auger Diameter | 20" |
| Unload Rate | 530 bu/min |
| Tractor HP Required | 175+ HP |
| Tongue Weight (Empty) | 1210 lbs |
| Tongue Weight (Loaded) | 4725 lbs (est.) |
| Total Weight (Wheels/Tires/Tarp) | 13,110 lbs (est.) |
| Total Weight (Tracks/Tarp) | 19,300 lbs (est.) |
| Ground Clearance | 16" |
| Transport Width (w/ 1050 tires) | 15' |
| Box Length | 21'8" |
| Total Length | 26'8" |
| Auger Reach (Side/Front) | 8'11" / 5'8" |
Manuals & Documents
- Manual
- AG20052 - Grain Cart - Single Auger 1000SA, 1100SA, 1300SA, & 1500SA Operator Manual
- AG20053 - Grain Cart - Single Auger Parts Manual
- CPB 513 Parts Manual TTS 70 80 100 110 Series EN
- CPB 515 Operation and Maintenance Manual OMM TTS 70 80 100 110 Series
- 1116535 Rev V Shurco Replacement Parts Manual
- AG11008 Harvest Equipment Rev36
