Develon | Material Handler | Model DX225MH-5 | Reach 35' 5" | Loading Height 40' 0" | 162 hp | 30.4 Tons | For Scrap, Recycling & Industrial Handling

Develon | Material Handler | Model DX225MH-5 | Reach 35' 5" | Loading Height 40' 0" | 162 hp | 30.4 Tons | For Scrap, Recycling & Industrial Handling

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Engine: 162 hp @ 1800 rpm for superior performance in material handling applications.
  • Impressive Reach: 35' 5" reach for efficient loading and unloading tasks.
  • Smart Power Control: Four power modes, including a lifting work mode for enhanced productivity.
  • Comfortable Cab: Ergonomically designed cab with excellent visibility and standard air suspension seat.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1: Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Develon | Material Handler | Model DX225MH-5 | Reach 35' 5" | Loading Height 40' 0" | 162 hp | 30.4 Tons | For Scrap, Recycling & Industrial Handling


DESCRIPTION

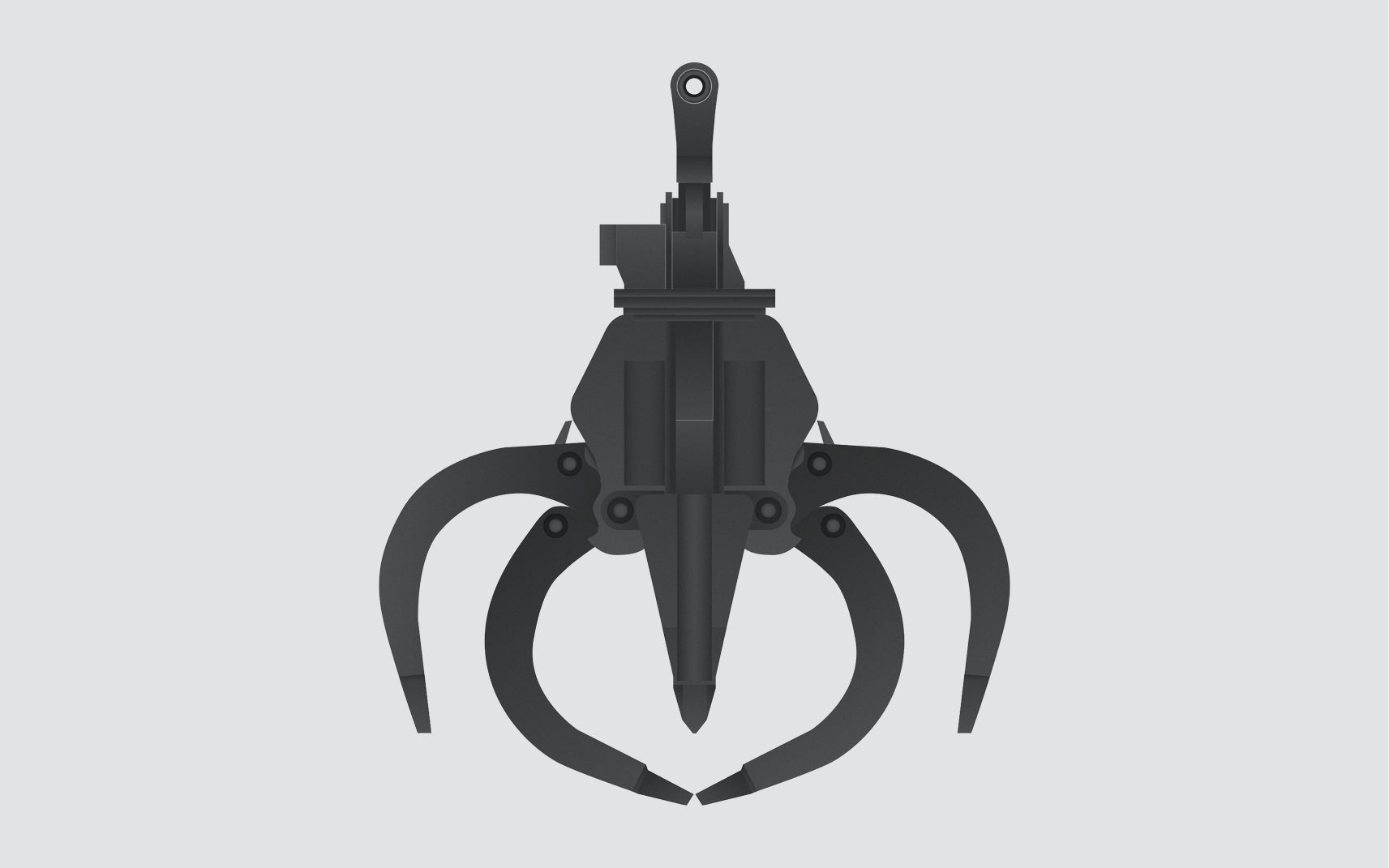

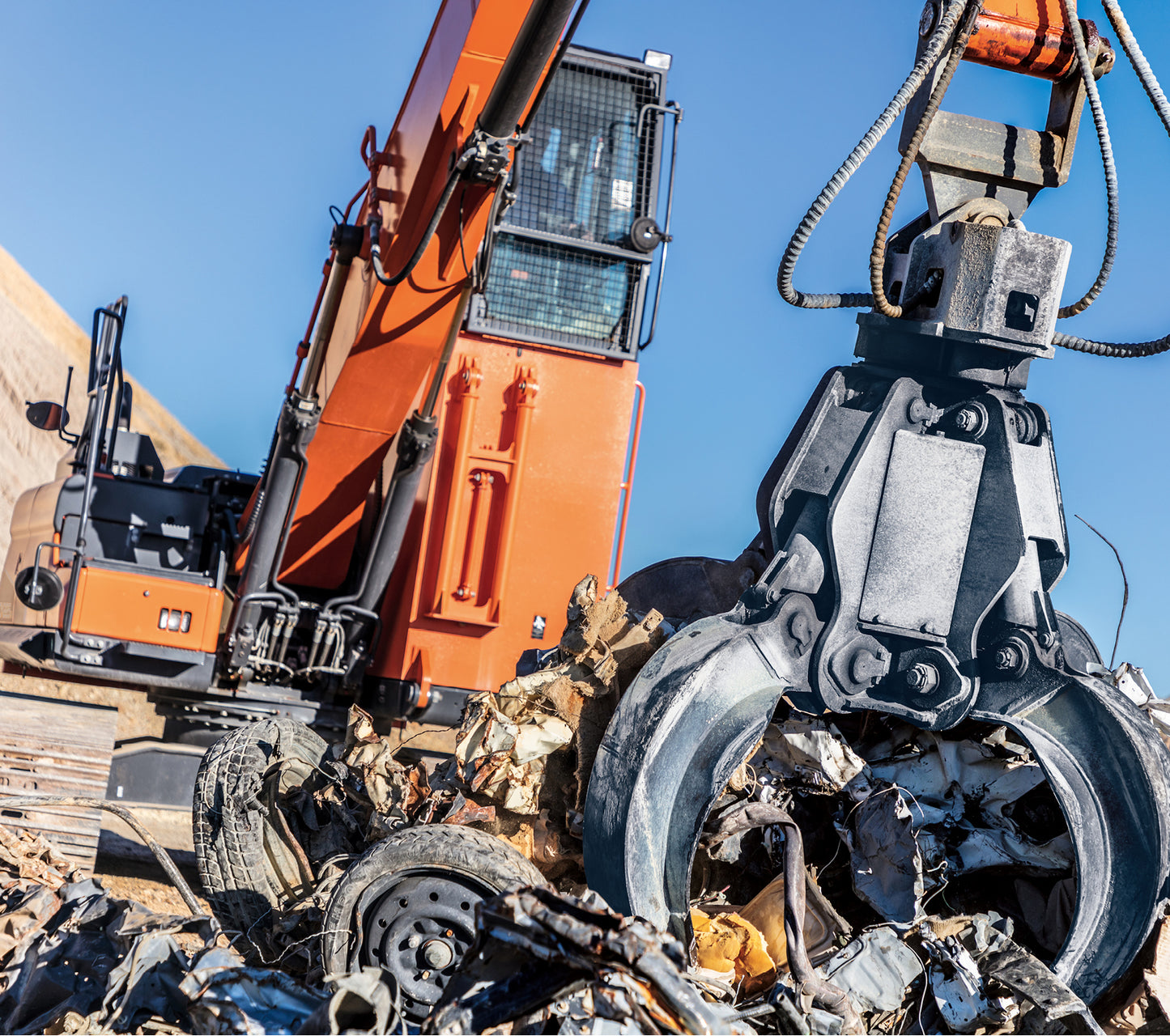

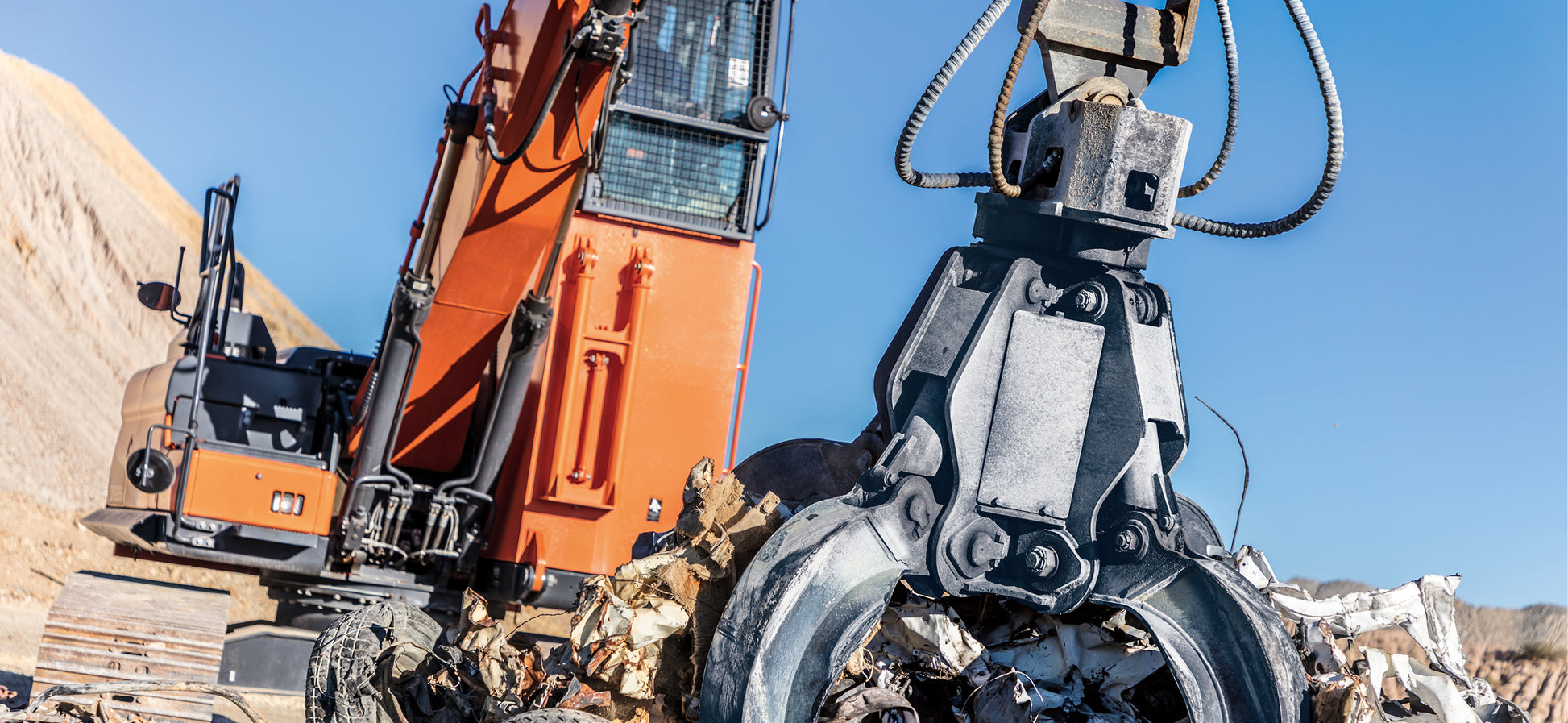

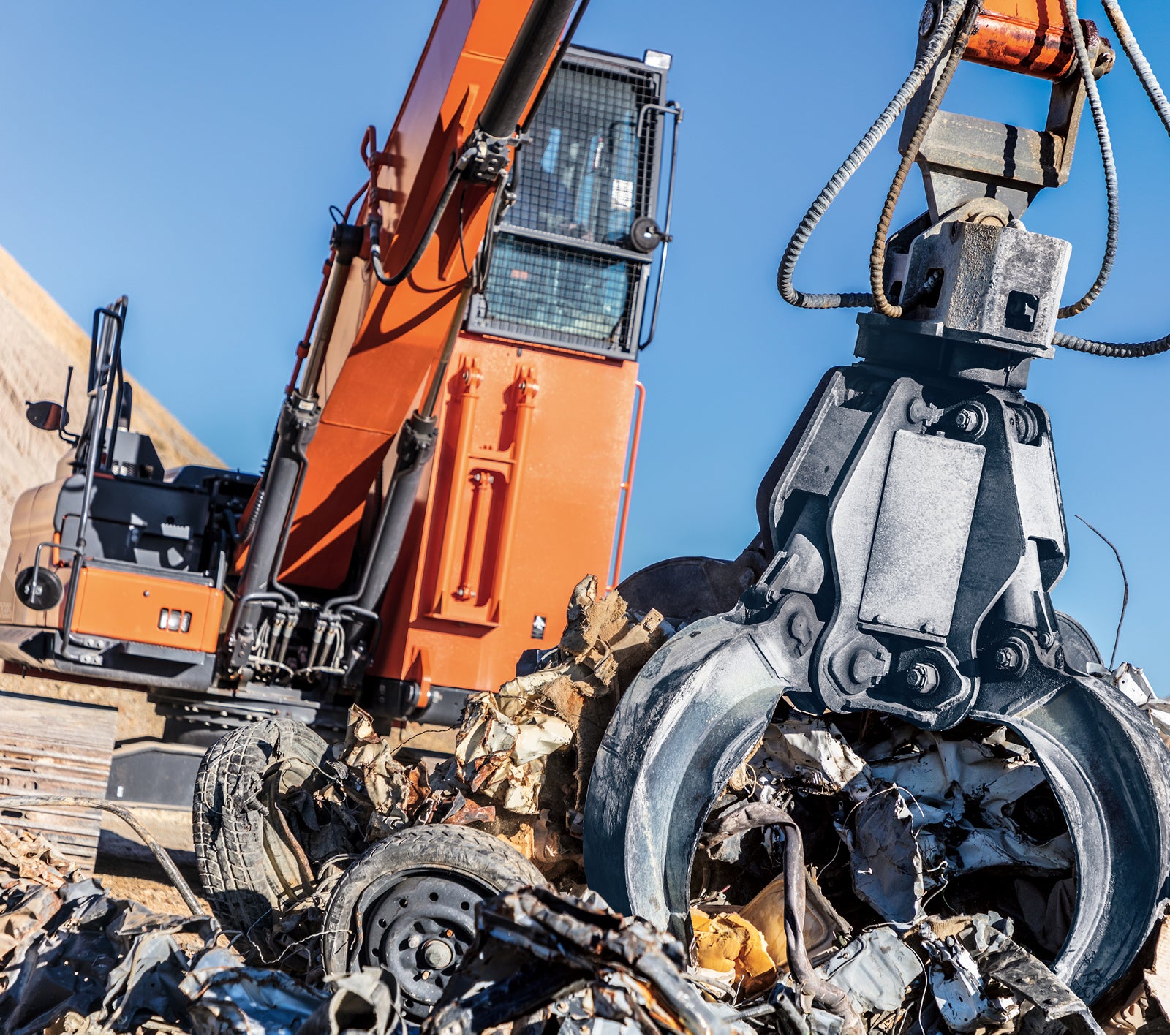

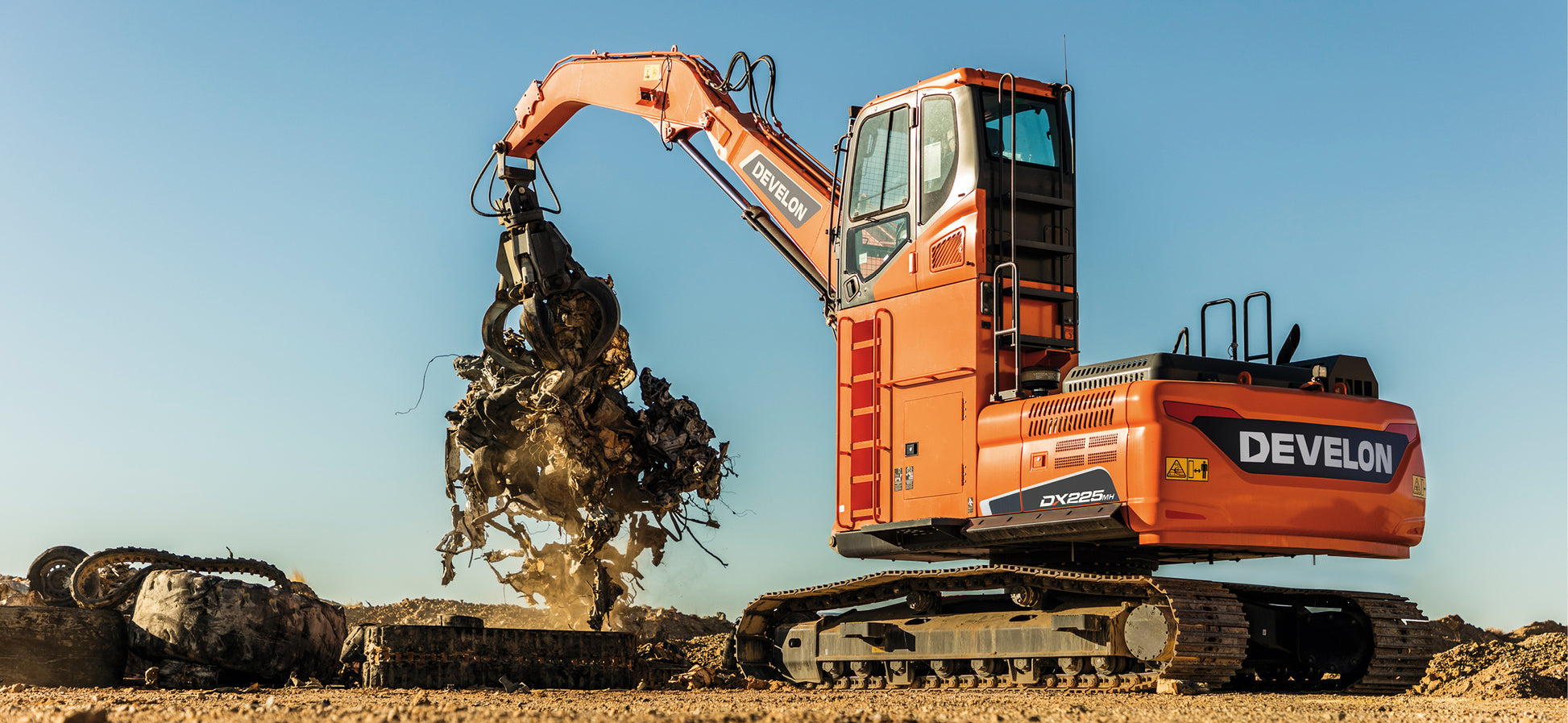

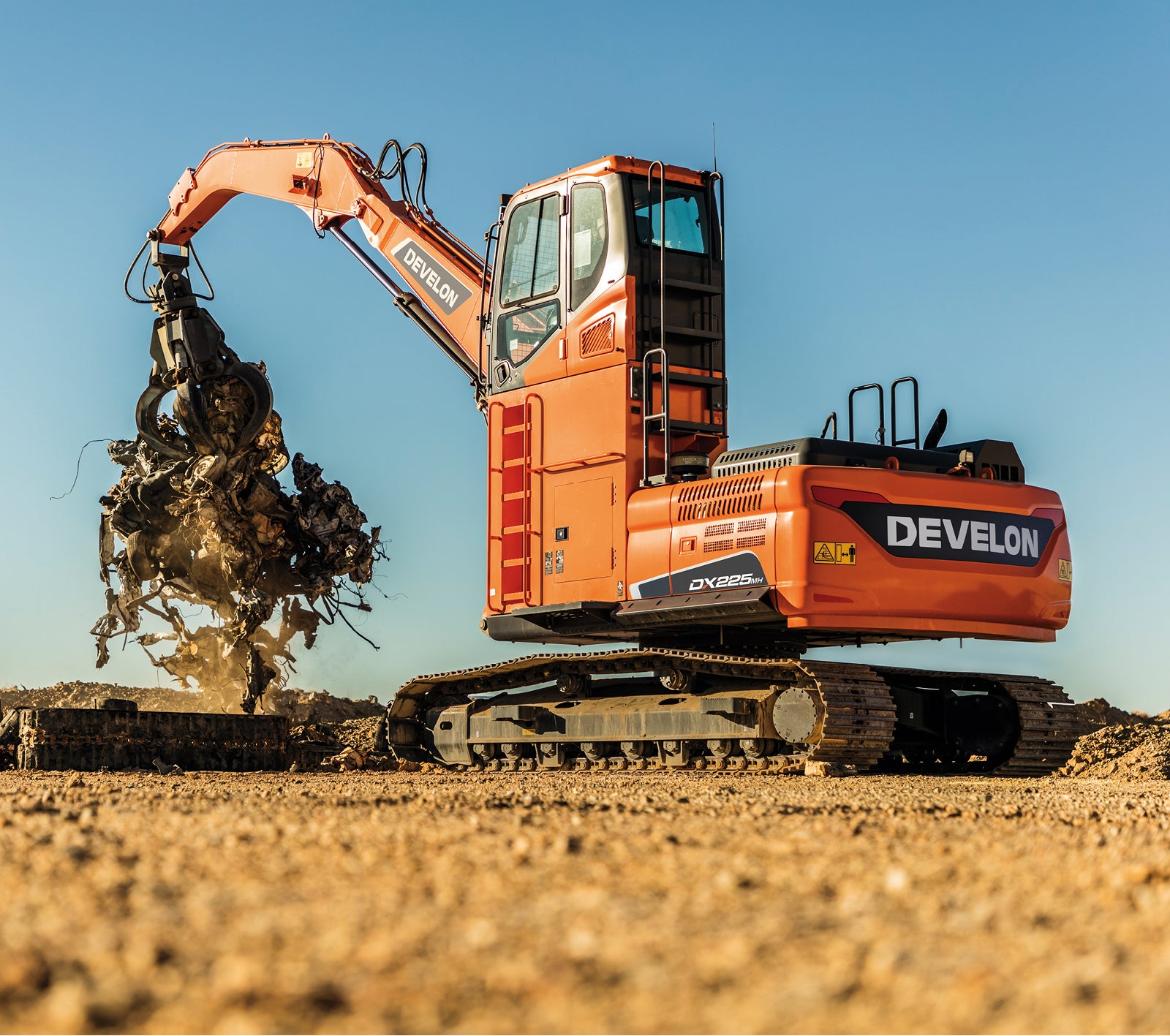

Take on the most demanding material handling challenges with the powerful and precision-engineered DEVELON DX225MH-5. This dedicated material handler is purpose-built with factory-installed features including a fixed 4-foot cab riser, straight boom, droop nose arm, counterweight, and grapple-ready hydraulics making it a natural choice for scrap yards, recycling operations, port terminals, and industrial applications.

Engineered for endurance, efficiency, and operator comfort, the DX225MH-5 offers superior lift capabilities and extended reach, all while delivering reduced fuel consumption and Tier 4 Final emissions compliance. The cab’s elevated design gives you unmatched visibility, while intuitive controls and multiple working modes ensure optimal performance in every environment.

Whether you're loading scrap, feeding a shredder, or managing bulk material, the DX225MH-5 ensures more control, greater stability, and maximum productivity job after job.

Key Features

  • Powerful Engine: 162 hp @ 1800 rpm for superior performance in material handling applications.
  • Impressive Reach: 35' 5" reach for efficient loading and unloading tasks.
  • Smart Power Control: Four power modes, including a lifting work mode for enhanced productivity.
  • Comfortable Cab: Ergonomically designed cab with excellent visibility and standard air suspension seat.
  • Tier 4 Compliance: Advanced emissions technology for environmentally friendly operation.
  • Reduced Maintenance: Easy access to service points and extended maintenance intervals for increased uptime.

Detailed Specifications

Category Specification
Engine DEVELON DL06K, 6-cylinder, Tier 4 compliant
Rated Power (Net) 162 hp @ 1800 rpm
Max Torque (Net) 557 lbf·ft @ 1400 rpm
Displacement 359 in³ (5.9 L)
Hydraulic System 2 x 54.55 gpm (Main Pumps), 7.1 gpm (Pilot)
Max Pressure (Normal) 4694 psi
Max Pressure (Power Boost) 4978 psi
Swing Mechanism Speed: 0 – 10.9 rpm
Swing Torque 60,757 lbf·ft
Travel Performance Speed: 1.8 – 3.4 mph (3.0 – 5.5 km/h)
Traction Force 60,715 lbf
Gradeability 70% (35°)
Working Range Max Reach (Ground): 35' 5"
Max Loading Height 40' 0"
Weight Operating Weight: 60,848 lb
Refill Capacities Fuel Tank: 105.7 gal / DEF Tank: 9 gal
Cooling System 5.9 gal
Hydraulic Tank/System 37 gal / 63.4 gal
Engine Oil 7.1 gal
Final Drives (each) 0.9 gal
Hydraulic Cylinders Boom (2): 4.9” x 3.3” x 49.6”
Arm (1): 5.5” x 3.9” x 67.1”
Cabin Tilting 4.5” x 2.0” x 33.7”
Undercarriage 8 Lower / 2 Upper Rollers per Track
Track Length 14’ 7” (4445 mm)
Shoes per Side 49
Cab Environment Exterior Sound Level: 102 dB(A)
Cabin Sound Level 70 dB(A) (ISO 6396)
