Field Tuff 60" Grader Blade Driveway Grader – Tow-Behind with Adjustable Blade | Towing Power 20–30 HP / 400cc+ | For ATVs, UTVs & Tractors
Included Options:
Leveling and grading driveways and parking lots
Preparing surfaces for construction or planting
Smoothing uneven areas on farms, gardens, or yards
DESCRIPTION
The Field Tuff 60" Grader Blade Driveway Grader (Model ATV-05ATVBG) is the ultimate tow-behind tool for leveling and grading tasks. Featuring a 60-inch wide working blade, this grader is designed to efficiently smooth driveways, parking lots, and other uneven surfaces.
With five adjustable blade angles and six height positions, you can customize the grading operation to suit your specific needs. The turnbuckle adjustment offers precise depth control, while the two built-in weight trays (12" x 19") allow you to add weight for more effective cutting.
The grader blade is equipped with 12-inch pneumatic wheels for easy maneuverability and stability over rugged terrain. Its pin hitch ensures compatibility with ATVs, UTVs, and lawn tractors, making it a versatile and reliable addition to your maintenance equipment.
Key Features
60" Working Blade Width – Covers wide paths for efficient grading, leveling, and surface smoothing
5-Way Adjustable Blade Angle – Tilt left or right to direct material flow and contour shaping

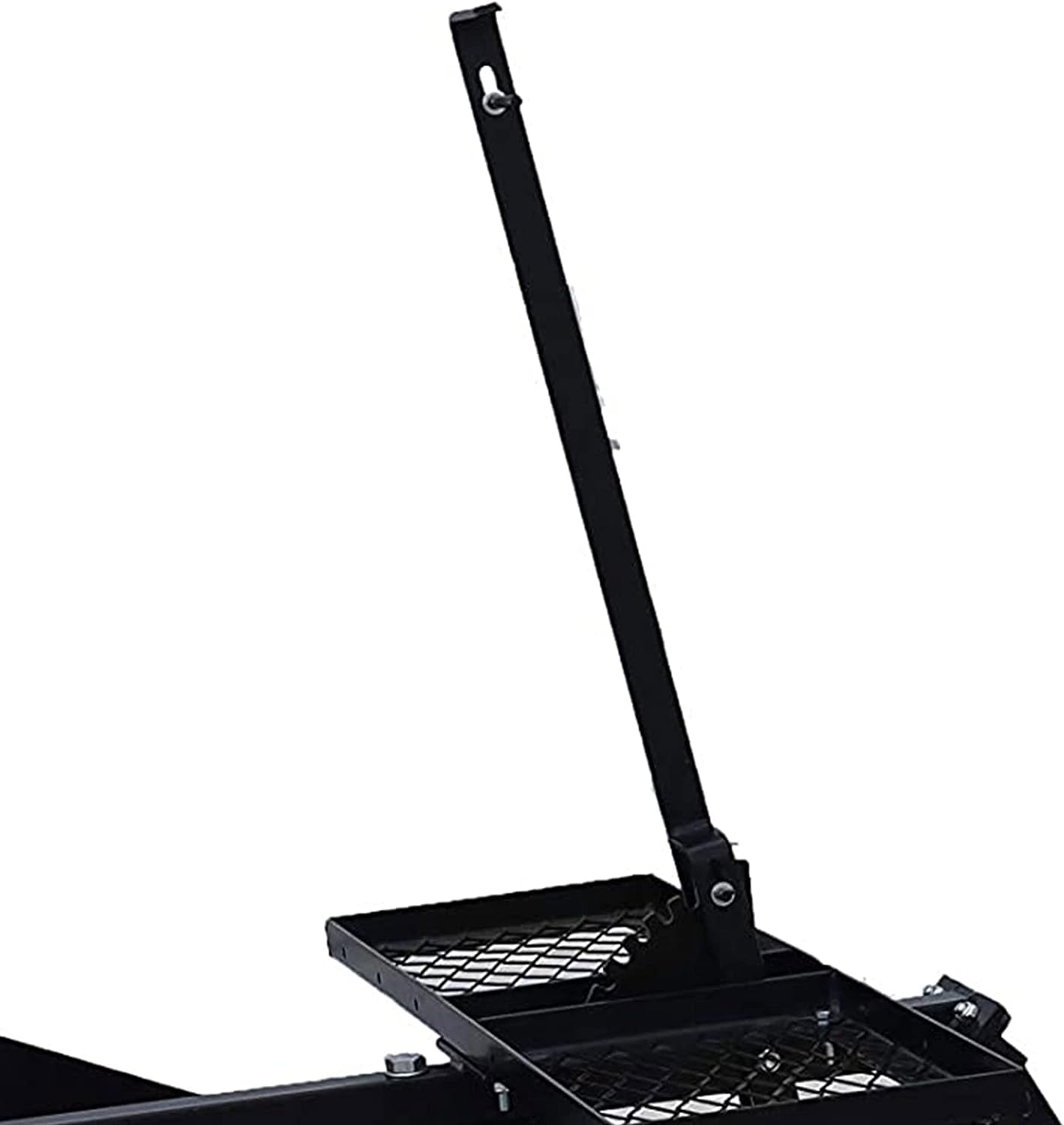

6-Position Height Lever – Manual lift system for precise depth control across terrain types
Dual Weight Trays – (12" × 19" each) Add ballast for deeper cuts and improved blade penetration
12" Pneumatic Wheels – Smooth towing and stable operation over gravel, soil, or turf
Pin-Style Hitch – Compatible with ATVs, UTVs, and sub-compact tractors
Recommended Towing Power – 20–30 HP tractor or 400cc+ ATV/UTV for optimal blade control
Heavy-Duty Frame – 200 lb unit weight ensures stability and consistent grading performance
Warranty – 1-Year Limited Manufacturer’s Parts Warranty
Detailed Specifications
Feature
Specification
Working Blade Width
60 inches
Hitch Type
Pin Hitch
Blade Angle Positions
5 Adjustable Angles
Height Adjustments
6 Positions via Position Lever
Weight Trays
2 Trays (12" × 19" each)
Wheel Size
12-inch Pneumatic Wheels
Dimensions (L × W × H)
66.15" × 22.44" × 11.22"
Unit Weight
200 pounds
Applications
Grading, Leveling, Smoothing Surfaces
Recommended HP
20–30 HP or 400cc+ ATV/UTV
Warranty
1-Year Limited Manufacturer’s Parts Warranty
