MiniTrencher

MiniTrencher GeoRipper® T/A Portable Handheld Trencher | Model H400 | 16" Digging Depth | For Husqvarna K770 & K970

MiniTrencher GeoRipper® T/A Portable Handheld Trencher | Model H400 | 16" Digging Depth | For Husqvarna K770 & K970

Regular price $1,700.00
Regular price Sale price $1,700.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Compatibility: Fits Husqvarna K770 and K970 power cutters.
  • Digging Depth: Maximum trenching depth of 16".
  • Trench Width: Standard digging width approximately 2".
  • Root Cutting: Cuts roots up to 3" thick.
  • Applications: For irrigation, landscaping, pipes, and underground wiring.
View full details

Product Description

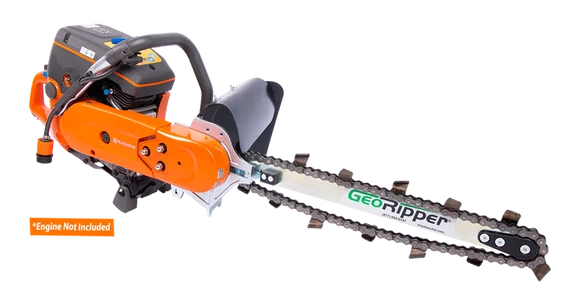

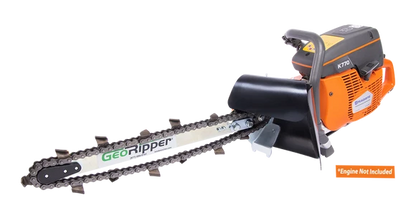

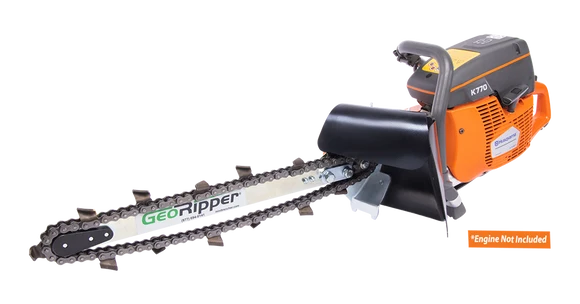

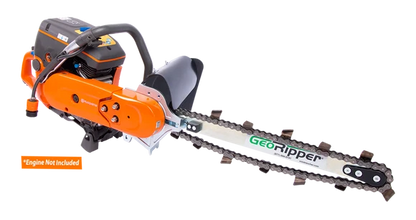

MiniTrencher GeoRipper® T/A Portable Handheld Trencher | Model H400 | 16" Digging Depth | For Husqvarna K770 & K970


DESCRIPTION

Upgrade your trenching capabilities with the Mini Trencher GeoRipper® T/A H400, a high-performance trenching attachment for Husqvarna® K770 and K970 Type III power cutters. Designed for efficient, precise trenching, this bolt-on/bolt-off attachment converts compatible power cutters into compact mini trenchers in minutes, helping reduce manual labor and improve job-site productivity. Featuring a maximum digging depth of 16 inches and a standard trench width of approximately 2 inches, it is ideal for irrigation systems, landscape lighting, root barriers, and underground pipe or wire installations. The self-sharpening digging teeth cut through tree roots up to 3 inches thick below grade, while the integrated safety bar and dirt deflection system support safer, cleaner operation. With two digging chains, a nose bar assembly, essential service components, and a tool kit included, the GeoRipper® T/A H400 delivers a compact, versatile trenching solution for professional landscaping and utility applications. Choose the version with or without the EZ Kart to suit your equipment setup.

Key Features

  • Husqvarna Power Cutter Compatibility Designed for Husqvarna® K770 and K970 Type III power cutters, this attachment transforms compatible cutting equipment into a compact trenching solution for landscaping and utility installation projects.
  • 16-Inch Maximum Digging Depth Achieve trenching depths up to 16 inches (400 mm), making it suitable for irrigation lines, landscape lighting, root barriers, and various underground pipe and wire installations.
  • Approximately 2-Inch Trench Width Create narrow trenches with a standard digging width of approximately 2 inches, helping minimize soil disturbance and reduce unnecessary excavation during precision installation work.
  • Quick Bolt-On Installation The bolt-on/bolt-off design lets operators convert a compatible Husqvarna power cutter into a GeoRipper® mini trencher in minutes, simplifying equipment changes between cutting and trenching tasks.
  • Cuts Roots up to 3 Inches Self-sharpening digging teeth are designed to cut tree roots up to 3 inches thick below grade, supporting demanding landscaping, garden renovation, and root-barrier installation projects.
  • Efficient Soil Removal The integrated dirt deflection system helps keep excavated soil on the ground near the trench, supporting a tidier work area and reducing unwanted soil scatter during operation.
  • Integrated Safety Bar The redesigned safety bar helps keep fingers away from moving components, providing an additional protective feature during trenching operations when used according to the manufacturer's instructions.
  • Improved Job-Site Productivity Mechanized trenching helps reduce dependence on manual digging, allowing landscaping professionals and contractors to complete suitable narrow-trenching tasks more efficiently.
  • Compact, Lightweight Design The GeoRipper® H Series starts at approximately 35 lb, offering a compact trenching solution designed to support portability and maneuverability on landscaping and installation jobs.
  • Rock Removal Capability Designed to help remove rocks up to 4 inches in many soil conditions, this attachment supports practical trenching in varied ground types. Actual performance depends on soil and site conditions.
  • Two Digging Chains Included Includes two 16-inch deep, approximately 2-inch-wide digging chains, giving users the specified chain components needed for the GeoRipper® T/A H400 configuration.
  • Complete Digging Bar Assembly The included 16-inch digging bar, nose bar end assembly, and nose sprocket provide essential trenching components for the attachment's cutting and digging configuration.
  • Essential Maintenance Accessories Additional drive belt, nose bearing, bar-end assembly screws, and a GeoRipper® tool kit help support routine servicing and component maintenance.
  • Field Chain Repair Support An included chain connector link supports chain repair in the field, helping operators address compatible chain-link repair needs during maintenance.

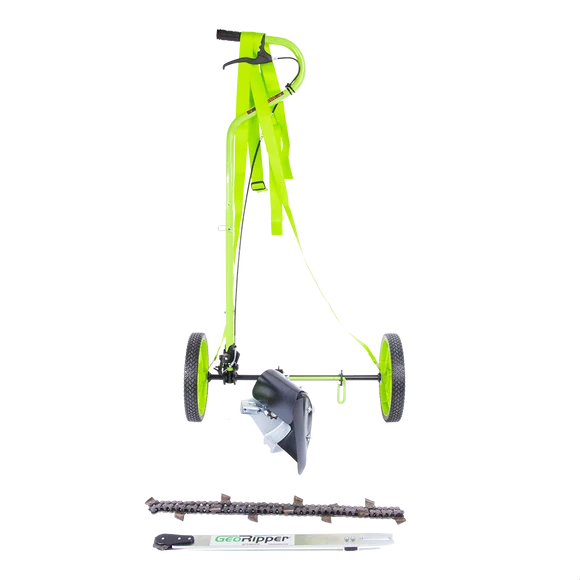

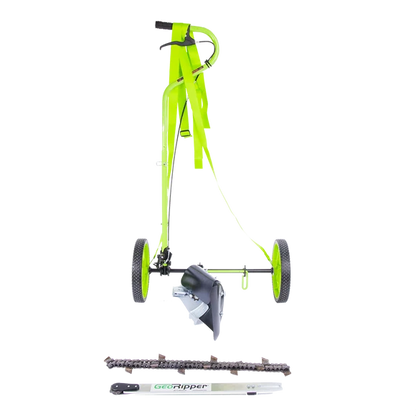

  • Flexible EZ Kart Configuration Choose the version with the Mini Trencher EZ Kart for a supported transport setup or select the attachment-only option for an existing equipment arrangement. Confirm the selected SKU before ordering.

Detailed Specifications

Specification Details
Brand Mini Trencher
Product Name GeoRipper® T/A H400
Product Type Power cutter trenching attachment
Model H400
Compatible Equipment Husqvarna® K770 and K970 Type III power cutters
Engine Requirement Compatible power cutter engine required; engine not included
Maximum Digging Depth 16 inches (400 mm)
Standard Digging Width Approximately 2 inches
Root-Cutting Capability Up to 3-inch-thick roots below grade
Rock Removal Capability Up to 4 inches in most soils, depending on conditions
Product Weight GeoRipper® H Series starts at approximately 35 lb; exact H400 attachment weight not specified
Installation Type Bolt-on / bolt-off
Safety Features Safety bar and dirt deflection system
Digging Teeth Self-sharpening
Digging Chains Included 2 chains
Digging Chain Dimensions 16-inch digging depth × approximately 2-inch width
Digging Bar Assembly 16-inch digging bar with nose bar end assembly and nose sprocket
Additional Components Drive belt, nose bearing, and bar-end assembly screws
Maintenance Accessories GeoRipper® tool kit and chain connector link
Documentation GeoRipper® owner's manuals
EZ Kart Configuration Available with or without EZ Kart, depending on SKU
Primary Applications Irrigation, root barriers, landscape lighting, pipe installation, and wire installation
UPC — With EZ Kart 810075761221
UPC — Without EZ Kart 810075761238
