MiniTrencher

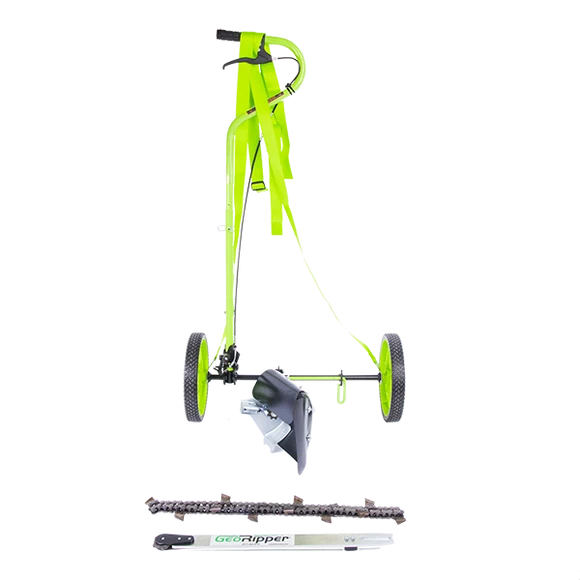

MiniTrencher GeoRipper T/A Portable Handheld Trencher | Model E400 | 16" Digging Depth | Echo CSG-7410 | 2" Trench Width

MiniTrencher GeoRipper T/A Portable Handheld Trencher | Model E400 | 16" Digging Depth | Echo CSG-7410 | 2" Trench Width

Regular price $1,700.00
Regular price Sale price $1,700.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Compatibility: Fits Echo CSG-7410 PowerCutters.
  • Digging Depth: Maximum 16" trenching depth.
  • Trench Width: Approximately 2" standard digging width.
  • Root Cutting: Cuts roots up to 3" thick.
  • Intended Use: For irrigation, landscaping, and underground utility installations.
View full details

Product Description

MiniTrencher GeoRipper T/A Portable Handheld Trencher | Model E400 | 16" Digging Depth | Echo CSG-7410 | 2" Trench Width


DESCRIPTION

Upgrade your trenching capabilities with the Mini Trencher GeoRipper® T/A E400, a high-performance trenching attachment for Echo® CSG-7410 PowerCutters. Designed for professional landscaping, irrigation, root barrier installation, landscape lighting, and underground pipe or wire projects, this compact attachment transforms your compatible power cutter into a versatile minitrencher in minutes. Its impressive 16-inch digging depth and approximately 2-inch standard trench width enable precise, narrow trenching with less manual labor. The self-sharpening digging teeth cut through tree roots up to 3 inches thick below grade, while the design can remove rocks up to 4 inches in most soils. An integrated safety bar and dirt deflection system help improve operator protection and keep excavated soil controlled. The package includes a 16-inch digging bar, two digging chains, essential maintenance components, and a tool kit. Choose the EZ Kart included or attachment-only configuration to match your project requirements. Engine not included.

Key Features

  • Echo CSG-7410 Compatibility Designed specifically for the Echo® CSG-7410 PowerCutter, this GeoRipper® T/A attachment converts a compatible power cutter into a compact trenching solution for professional landscaping and installation projects.
  • 16-Inch Digging Depth Achieve trench depths of up to 16 inches for irrigation lines, landscape lighting, underground wiring, root barriers, and other shallow utility installations.
  • Approximately 2-Inch Trench Width Create narrow, precise trenches with a standard digging width of approximately 2 inches, helping reduce unnecessary soil disturbance during landscaping and utility work.
  • Cuts Roots up to 3 Inches Self-sharpening digging teeth help cut through tree roots up to 3 inches thick below grade, supporting efficient trenching in root-affected soil.
  • Removes Rocks up to 4 Inches Designed to remove rocks up to 4 inches in most soils, helping operators handle challenging ground conditions during suitable trenching applications.
  • Quick Bolt-On Installation The bolt-on/bolt-off attachment design allows users to convert a compatible Echo power cutter into a minitrencher and switch back in minutes.
  • Industrial-Grade Performance Engineered for demanding trenching applications, the GeoRipper® T/A E400 offers a compact solution for contractors, landscapers, and installation professionals.
  • Compact, Lightweight Design GeoRipper® E-Series equipment starts at approximately 35 lb., offering a portable alternative to larger trenching equipment. Actual attachment weight may vary by configuration.
  • Integrated Safety Bar The included safety bar helps keep fingers away from moving components, supporting safer operation when used according to the manufacturer's instructions.
  • Dirt Deflection System The dirt deflection system helps keep excavated soil on the ground, supporting a cleaner and more controlled trenching process.
  • Two Digging Chains Included Includes two 16-inch-deep, 2-inch-wide digging chains to support the supplied trenching bar configuration and facilitate equipment setup.
  • Complete Digging Bar Assembly Supplied with a 16-inch digging bar, nose bar end assembly, and nose sprocket for the designated GeoRipper® T/A E400 configuration.
  • Maintenance Components Included Additional drive belt, nose bearing, bar-end assembly screws, and a chain connector link help support maintenance and field repairs.
  • EZ Kart Configuration Options Select the version with the Mini Trencher EZ Kart included or choose the attachment-only option to suit your existing equipment and workflow.
  • Versatile Trenching Applications Suitable for irrigation systems, landscape lighting, root barriers, and underground pipe or wire installations, helping reduce manual digging and improve job-site productivity.

Detailed Specifications

Specification Details
Brand Mini Trencher
Product Name GeoRipper® T/A E400 for Echo®
Model (EZ Kart Included) GRTA-E400
Model (Without EZ Kart) GRTA-E400-NOEZ
Product Type Power cutter trenching attachment
Compatible Power Cutter Echo® CSG-7410
Engine Included No
Maximum Digging Depth 16 inches
Standard Trench Width Approximately 2 inches
Root Cutting Capacity Up to 3 inches thick below grade
Rock Removal Capability Up to 4 inches in most soils
Digging Bar Length 16 inches
Digging Chains Included 2
Digging Chain Dimensions 16-inch deep × 2-inch wide
Safety Features Safety bar and dirt deflection system
Digging Teeth Self-sharpening
Attachment Design Bolt-on / bolt-off
EZ Kart Included with GRTA-E400; not included with GRTA-E400-NOEZ
Included Accessories Nose bar end assembly, nose sprocket, additional drive belt, nose bearing, bar-end assembly screws, chain connector link, and GeoRipper® tool kit
Primary Applications Irrigation, root barriers, landscape lighting, underground pipe and wire installation
UPC (EZ Kart Included) 810075761269
UPC (Without EZ Kart) 810075761276
