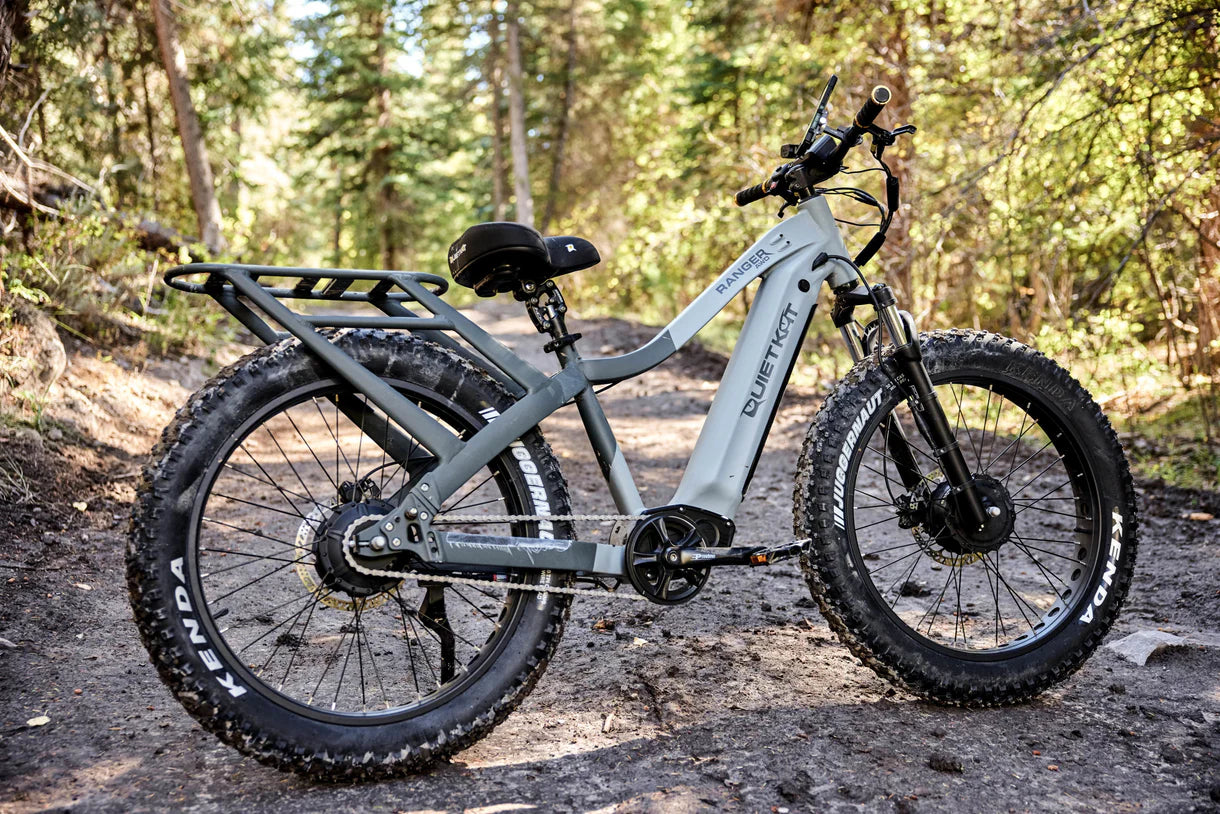

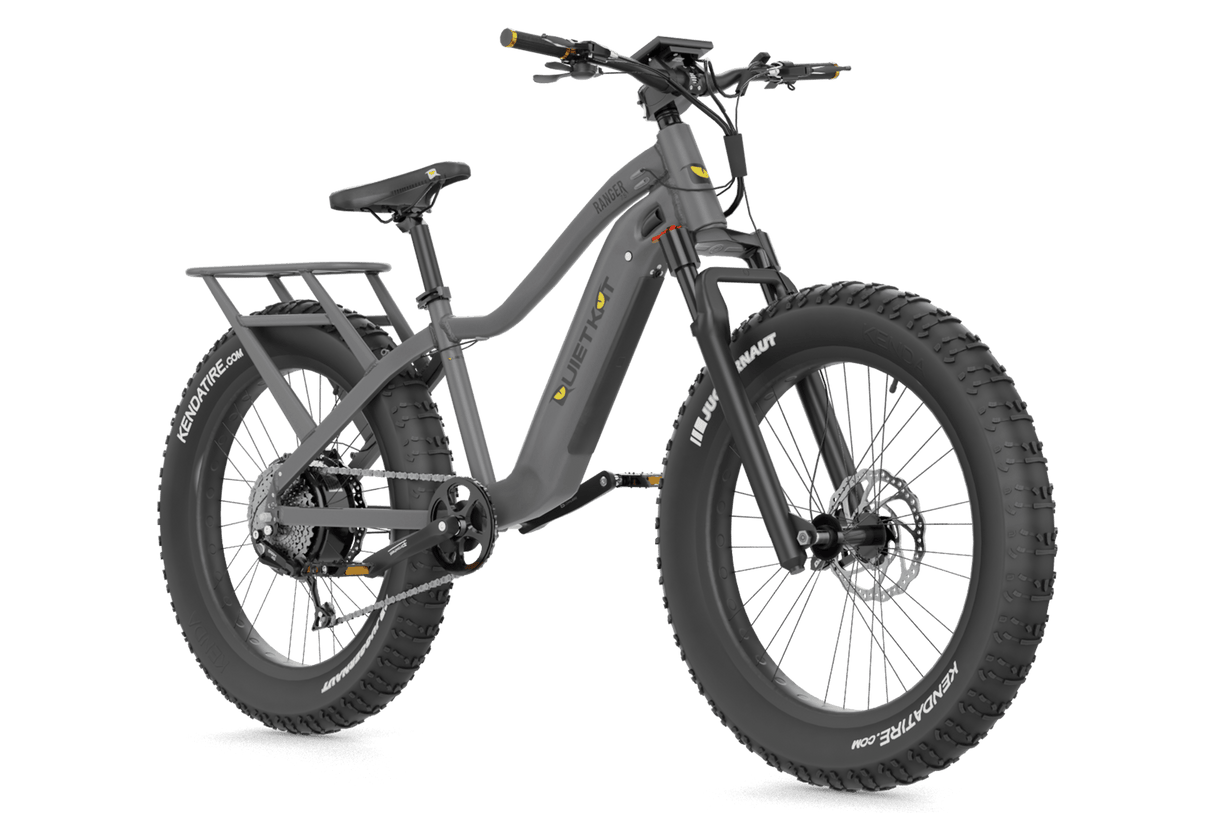

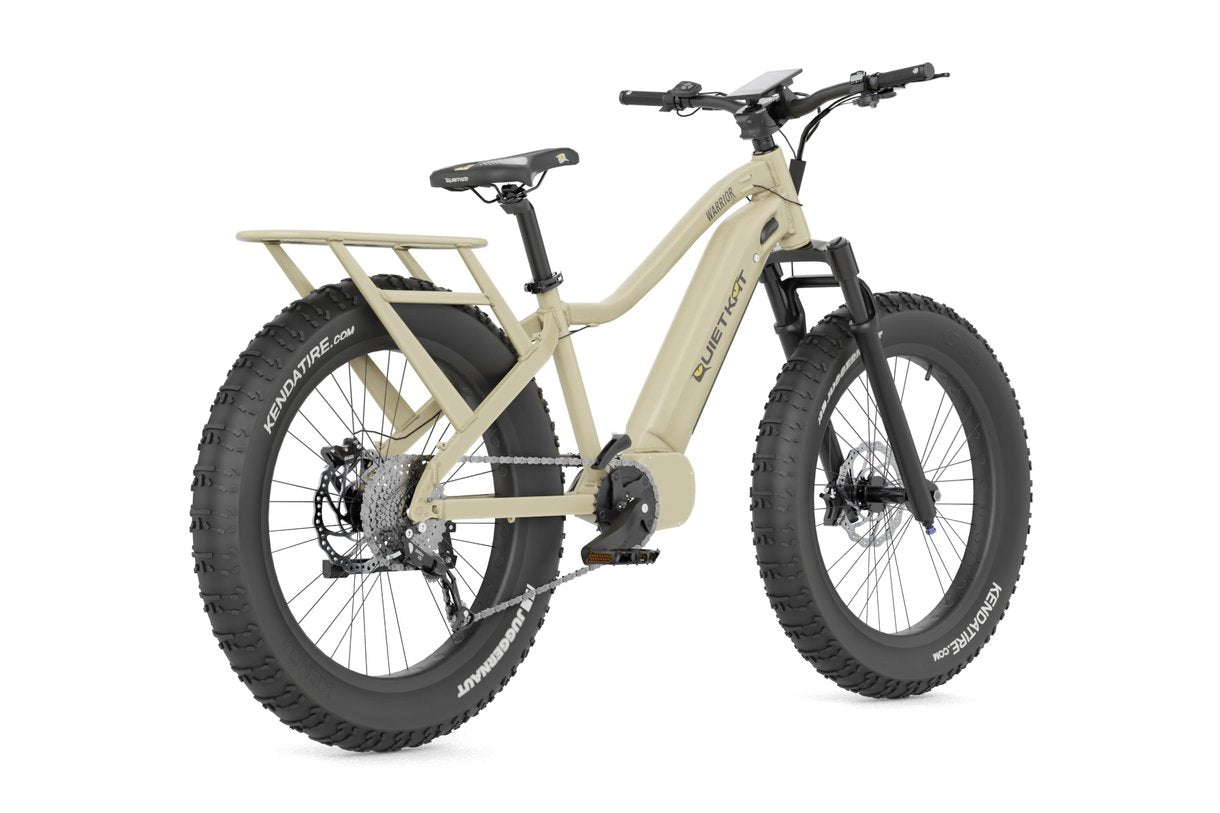

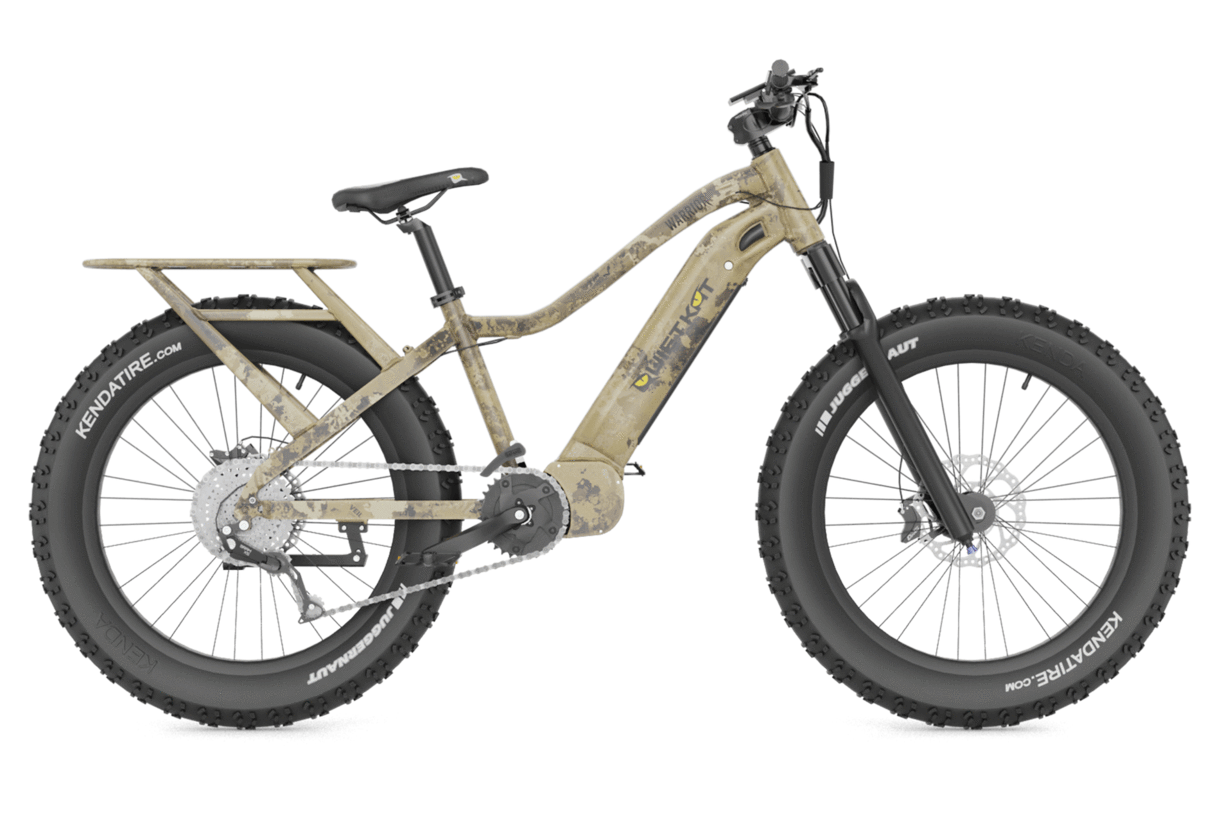

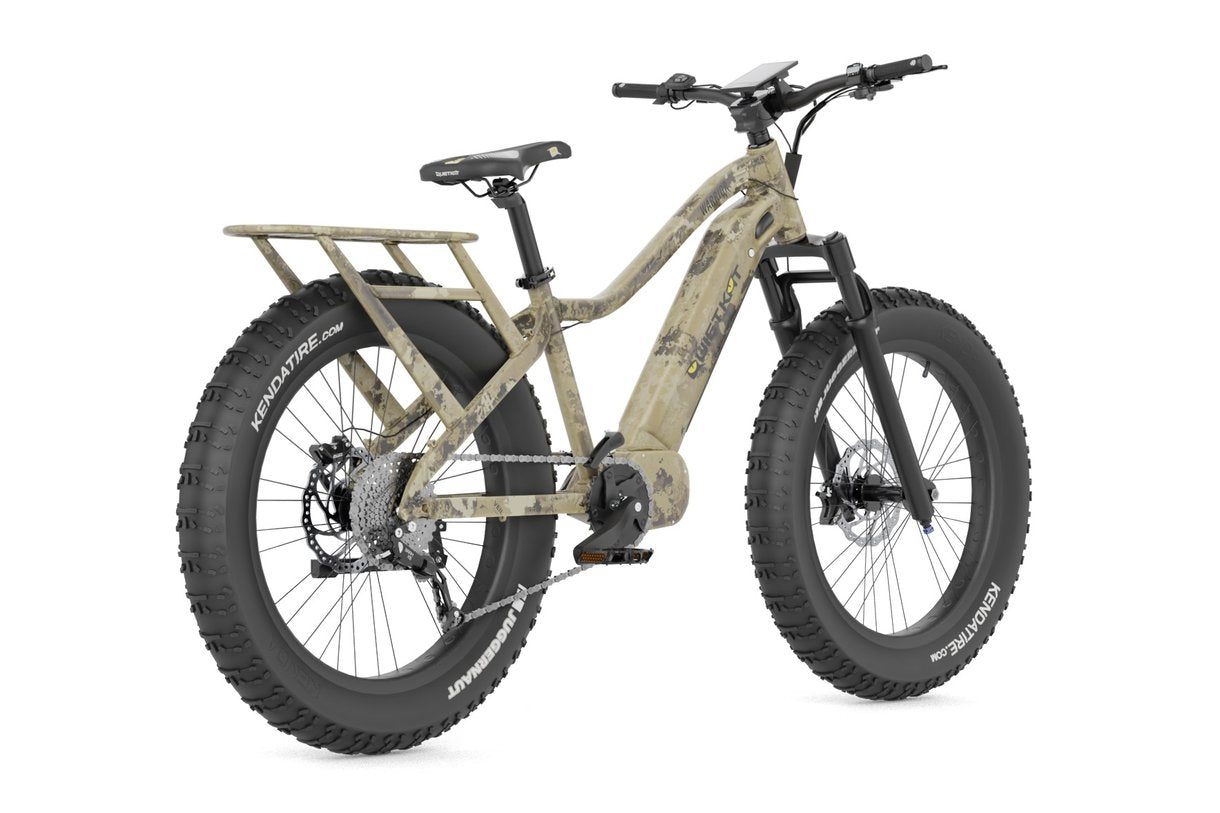

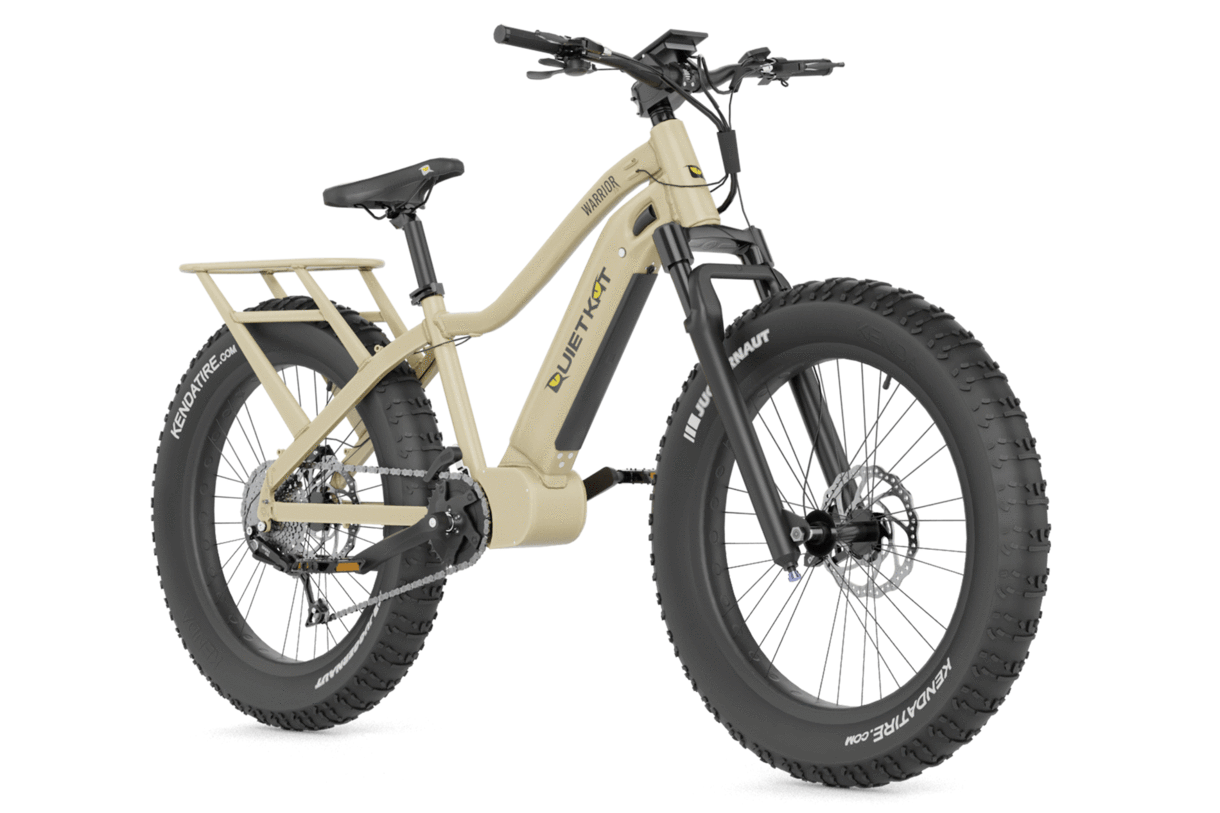

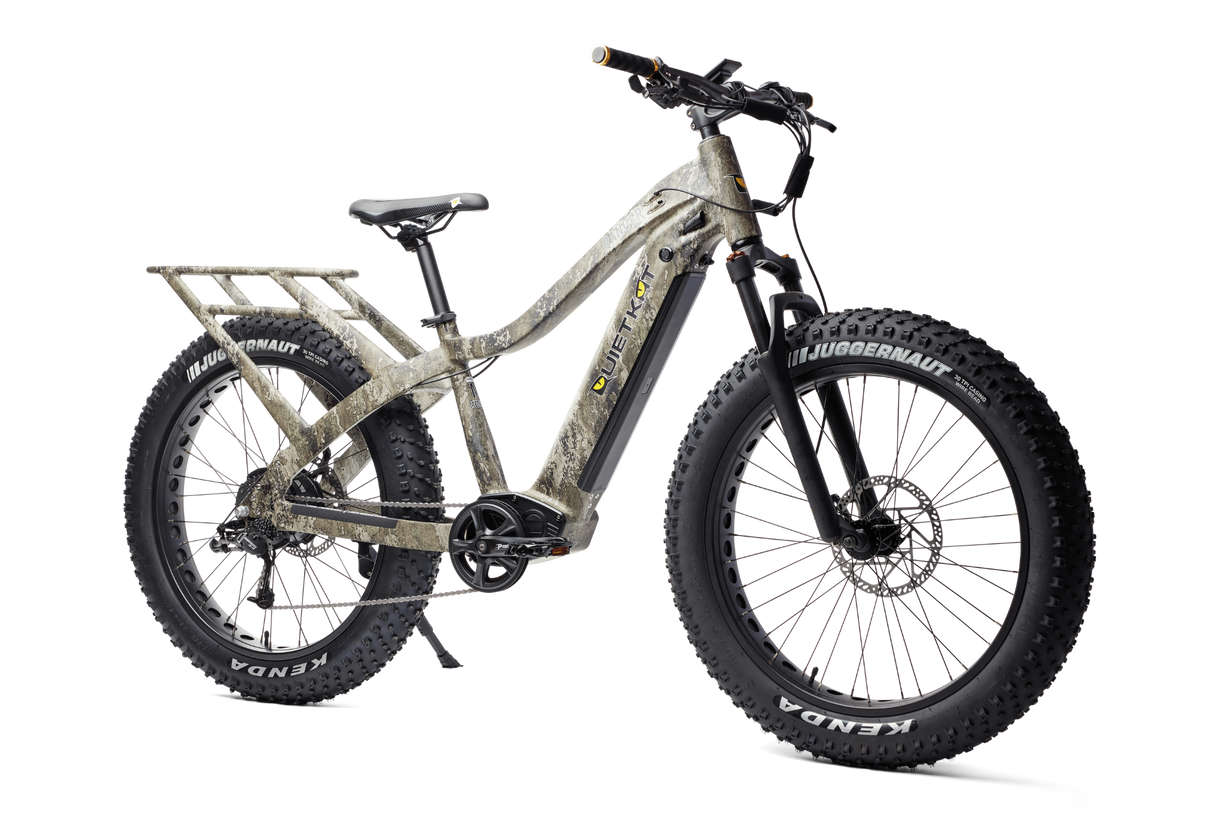

QuietKat Ranger AWD E-Bike | 750W/1000W Hub Drive | 11.6Ah Battery | Up to 48-Mile Range
DESCRIPTION
The QuietKat Ranger Fat Tire Electric Bike is built to deliver a longer, smoother ride, even when you’re venturing far off the grid. Powered by a robust hub-drive motor available in 750W or 1000W, the Ranger ensures consistent power delivery, independent of the chain, with minimal maintenance required.
Featuring an integrated battery system, the Ranger offers a range of up to 48 miles, making it perfect for extended adventures. Its rugged frame with a load capacity of 325 lbs and integrated rear pannier rack allows you to carry all the gear you need. Paired with Kenda Juggernaut fat tires and a Mozo coil suspension fork, the Ranger is equipped to handle diverse terrains, from soft sand and snow to hardpack trails.
With advanced braking from Tektro mechanical disc brakes and a 7-speed SRAM drivetrain, the Ranger provides the reliability and performance needed for any terrain. Whether you’re cruising through rough trails or rolling hills, the QuietKat Ranger has you covered.
Key Features
Motor Performance: 750W or 1000W hub-drive motor delivers direct power for smooth operation.
Integrated Battery: Panasonic 11.6AH/48V battery with up to 48 miles of range per charge.
Durable Frame: Supports up to 325 lbs and includes an integrated pannier rack for gear transport.
All-Terrain Capability: Fat tires and coil suspension ensure stability and traction on challenging terrains.
Reliable Braking: Tektro mechanical disc brakes with 203mm rotors for confident stopping power.
Integrated battery and motor system: Improved battery offers up to 48 miles on a single charge.
Powerful hub-drive motor: Available in both 750 watt and 1000 watt options, the motor provides direct power to the rear wheel, independent of the chain; giving you consistent power in all gears with almost no maintenance required.
Updated frame and geometry: Our rugged frame with integrated rear pannier rack has a load capacity of 325 lbs. and provides improved handling while carrying the gear you need for your adventure.
QuietKat performance components: Outfitted with an adjustable coil suspension fork with 100mm of travel, mechanical disc brakes, and a 7-speed drivetrain, and powerful 750 or 1000W hub--drive motor with removable thumb throttle; the Ranger fat-tire electric bike can handle rough terrain and rolling hills.
Improved braking: Equipped with Tektro two-piston mechanical disc brakes, with a large 203mm rotor the Ranger’s braking system provides confidence and control over rough and rolling terrain.
Fat tires: Featuring mountain bike fat tires for added stability and traction, the Ranger can handle a variety of terrain from soft sand and snow to hardpack rocks and roots.
Detailed Specifications
Feature
Specification
Motor / Class
750W or 1000W Hub-Drive
Battery
Panasonic 11.6AH/48V (557WH)
Range
Up to 48 Miles
Modes
5 Levels of Pedal Assist, Throttle, Walk Assist
Gears
SRAM 7-Speed
Brakes
Tektro Mechanical Disc (203mm Rotors)
Suspension
Mozo Coil Suspension Fork (100mm Travel)
Tires
Kenda Juggernaut 26"x4.5"
Weight
65 lbs
Load Capacity
325 lbs
Frame Sizes
15.5" S, 17" M, 19" L
Colors
Sandstone, Veil Poseidon Dry Camo
Manuals & Documents
