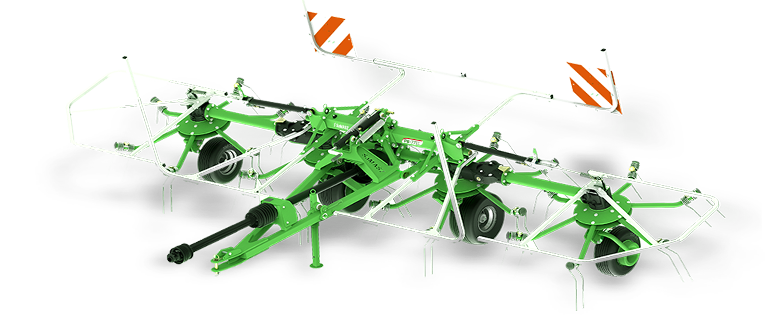

Rankin Rotary Tedder Model P4531C|204" Working Width | 40 HP For Tractor
DESCRIPTION
The Rankin 17.5' Rotary Tedder Model P4531C is built for efficiency, durability, and high-performance hay tedding. Designed for large-scale farming, this tedder maximizes drying efficiency by evenly spreading and fluffing hay for faster and more consistent curing.
With a 17.5-foot working width, the P4531C covers a wide area quickly, reducing labor time and increasing productivity. The double drive side transmission ensures even power distribution, while central & side gearbox oil coolers prevent overheating, extending the machine's lifespan.
The hydraulic rear roller adjustment allows precise control over tedding height, giving farmers the flexibility to adjust for different field conditions. The durable 10mm C-shaped blades ensure long-lasting performance and effective tedding, while the heavy-duty PTO shaft with a 4-disc slip clutch enhances power transfer and protection.
Perfect for commercial hay operations, dairy farms, and large-scale forage production, the Rankin P4531C Rotary Tedder is engineered for reliability and superior hay management.
Benefits
Efficient Performance: With its large working width and deep tedding capability, the Rankin P4531C boosts productivity, making it perfect for large-scale operations.
Durable Construction: The gear-driven system and robust design ensure that the tedder can handle heavy-duty tasks over time.
Versatile Compatibility: The machine is designed to work with a range of tractor models, making it a versatile addition to any agricultural setup.
Enhanced Control: Adjustable features like the hydraulic rear roller and threaded bar tailgate adjustment allow for precision control, enhancing the effectiveness of the tedding process.
Key Features
10" Working Depth: Ensures thorough tedding for improved hay quality.
Double Drive Side Transmission: Provides reliable and robust power distribution.
Central & Side Gearbox Oil Coolers: Prevents overheating, extending service life.
Hydraulic Rear Roller Adjustment: Allows precise control of tedding height for optimal results.
Durable C Shaped Blades: 10mm blades designed for long-lasting performance and effective tedding.
Detailed Specifications
Feature
Details
Model
P4531C
Working Depth
10 inches
Tines / Rods
4 Rotors
Transmission
Double Drive Side Transmission
Cooling System
Central & Side Gearbox Oil Coolers
Width - Overall
204" (17 feet; 518 cm)
Width - Working
204" (17 feet; 518 cm)
Rear Roller Adjustment
Hydraulic
Blades
C Shaped, 10mm
Horsepower Recommended
40 HP Minimum (29.8 kW)
PTO Shaft
Included, Heavy Duty Size 8 PTO Shaft with 4-Disc Slip Clutch
Hitch Connection Type
Drawbar Connection
Weight
1530 lbs
Manufacturer
Rankin Equipment
