TERAN

TERAN 9921 lbs TDSH45 Rotating Shear, Excavator Attach

TERAN 9921 lbs TDSH45 Rotating Shear, Excavator Attach

Regular price $1.00
Regular price Sale price $1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Powerful Cutting Capacity: 700mm opening and 690mm depth for handling concrete, steel, and scrap materials.
  • Extended Reach: 3361mm length allows operators to tackle large structures and hard-to-reach areas.
  • Heavy-Duty Design: Built for excavators weighing between 61,730 lbs and 132,277 lbs.
  • Hydraulic Precision: Operates at 340 Bar oil pressure with a 300/350 L/min capacity for continuous and efficient use.
  • Integrated Rotation Mechanism: Enables precise material positioning with 120/130 Bar rotation oil pressure and 50/60 L/min capacity.
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

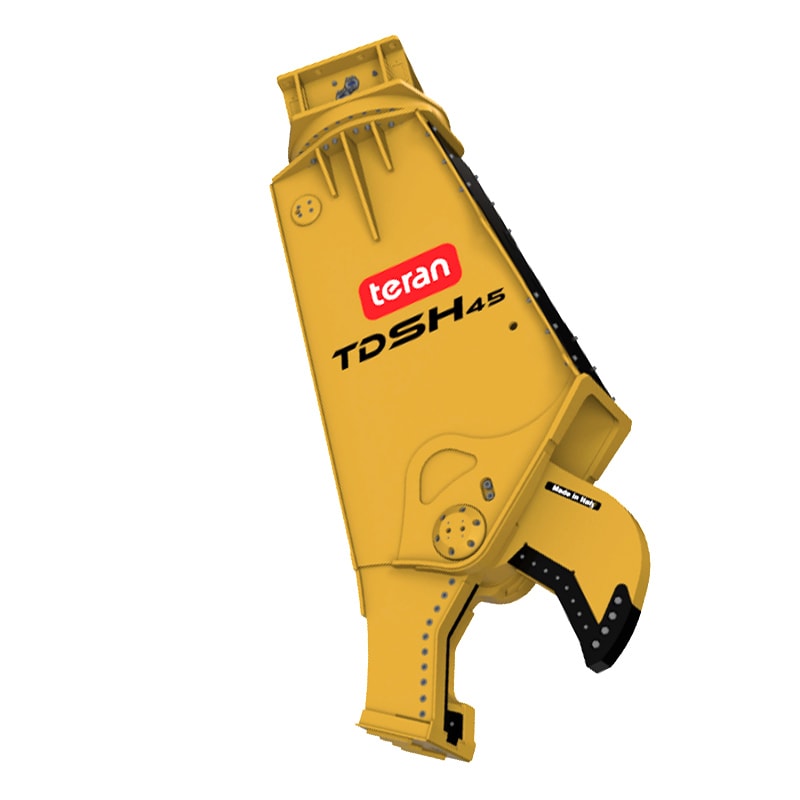

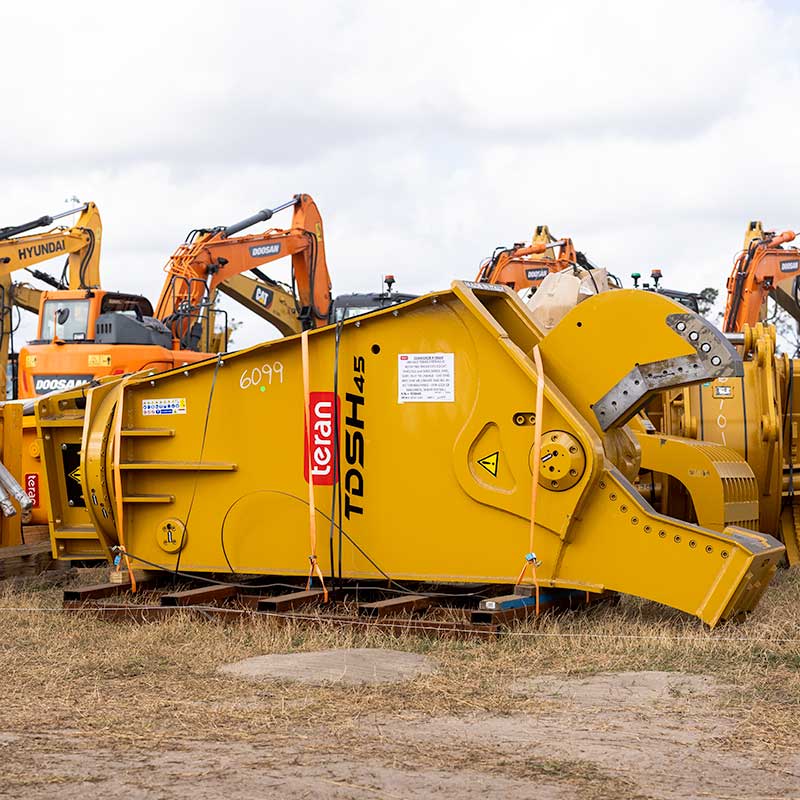

TERAN 9921 lbs TDSH45 Rotating Shear, Excavator Attach

DESCRIPTION

The Teran TDSH45 Rotating Shear is a high-performance excavator attachment engineered for demanding demolition and material-handling projects. Featuring a 700mm cutting opening and 690mm depth, it efficiently handles concrete, steel, and scrap, making it ideal for demolishing industrial buildings, bridges, and large structures.

With a robust 3361mm length for extended reach, this shear is designed for excavators ranging from 61,730 to 132,277 lbs. Its high-pressure hydraulic system ensures precise and forceful cutting, while the integrated rotation mechanism provides flexible material handling. The TDSH45 is compatible with major excavator brands like Caterpillar, Komatsu, Volvo, and more, making it a versatile solution for industrial demolition and recycling tasks.

Key Features

  • Superior Cutting Power: 700mm opening and 690mm depth for tackling a variety of tough materials.
  • Extended Reach Design: 3361mm length ensures optimal access to elevated or challenging demolition areas.
  • High Hydraulic Performance: Operates at 340 Bar oil pressure with a 300/350 L/min capacity for heavy-duty use.
  • Rotational Precision: Integrated rotation mechanism provides efficient material handling and positioning.
  • Wide Compatibility: Suitable for 50-60 ton excavators across major brands like Caterpillar, Komatsu, Volvo, and more.

Detailed Specification

Specification Details
Cutting Opening 700 mm
Length 3361 mm
Cutting Depth 690 mm
Weight 9,921 lbs
Oil Pressure 340 Bar
Oil Capacity 300/350 L/min
Rotation Oil Pressure 120/130 Bar
Rotation Oil Capacity 50/60 L/min
Excavator Compatibility 61,730 lbs to 132,277 lbs
Supported Brands Caterpillar, Komatsu, Volvo, Bobcat, and more

Compatible Attachments

Attribute Details
Excavator Models 345, 349D, 349E, 352F, 374D, and more.
Supported Brands Caterpillar, Komatsu, Volvo, Doosan, Hyundai, JCB, John Deere, and more.

In Package

  • Teran TDSH45 Rotating Shear Attachment
  • Integrated Hydraulic Rotation Mechanism
  • Heavy-Duty Construction for 50-60 Ton Excavators
  • Owner’s Manual and Installation Guide
