YORK

York Heavy-Duty Rotary Broom | TFB & HTB Series | Width 84", 96", 108" & 120" | Brush Diameter 32? | Horsepower 13-30 HP | For Tractors

York Heavy-Duty Rotary Broom | TFB & HTB Series | Width 84", 96", 108" & 120" | Brush Diameter 32? | Horsepower 13-30 HP | For Tractors

Regular price $11,121.00
Regular price Sale price $11,121.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Sweeping Widths Available: Models offered in 84", 96", 108", and 120" widths for large-scale cleanup and facility maintenance
  • Brush Diameter: Equipped with a robust 32" rotary brush, built to tackle coarse debris and heavy residue
  • Horsepower Requirement: Operates smoothly with tractors rated between 13–30 HP, suited for compact and mid-size units
  • Drive System: Utilizes either tractor PTO or hydraulic drive, based on model series and mounting setup
View full details

Product Description

York Heavy-Duty Rotary Broom | TFB & HTB Series | Width 84", 96", 108" & 120" | Brush Diameter 32″ | Horsepower 13-30 HP | For Tractors

DESCRIPTION

Whether you're clearing streets, driveways, or large commercial lots, the York TFB and HTB Series Hydraulic Rotary Brooms deliver unmatched performance and flexibility. Designed for truck-mounted (TFB327, TFB328, TFB329, TFB3210) or tow-behind (HTB Broom Section Only & HTB9208) applications, these powerful sweepers handle tough debris, wet leaves, and fresh snow with efficiency and reliability.

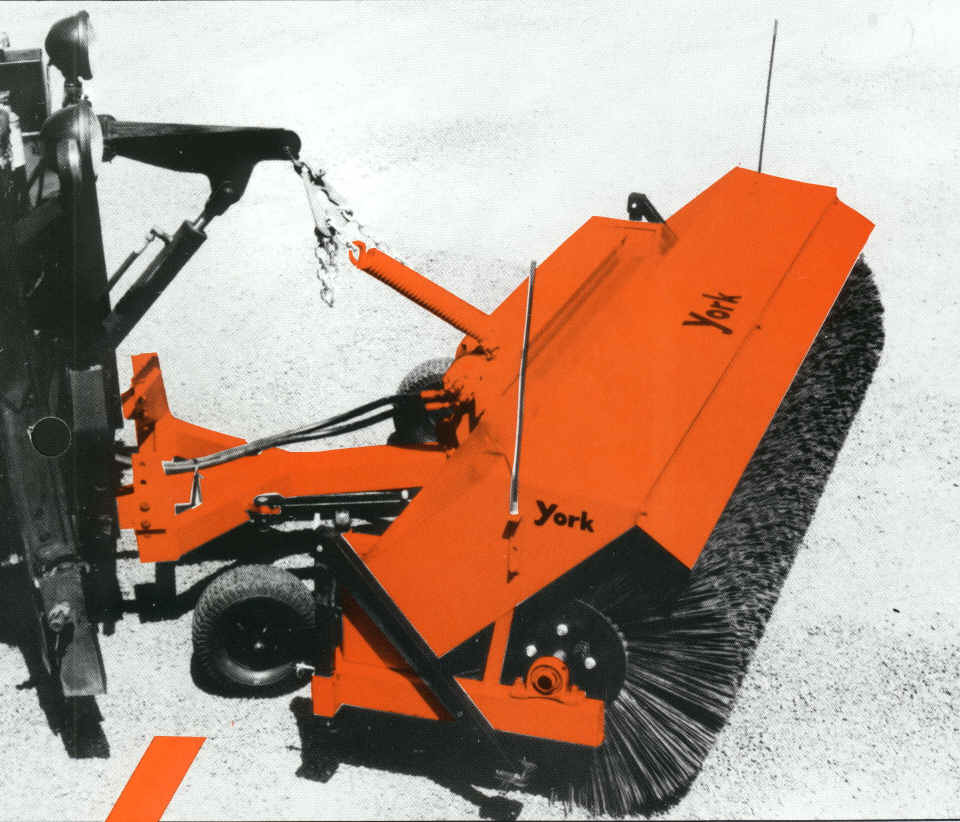

Built around a heavy-duty 32″ brush diameter, gerotor hydraulic drive system, and reversible rotation, each model offers consistent sweeping power. The TFB models mount directly to snow plow frames on ¾-ton or larger trucks, offering manual 15°/30° angling and adjustable down pressure. The HTB series tows behind trucks or tractors and adds tilt and float for varied terrain. With brush composition options poly, wire, or 50/50 you can tailor your broom for light or heavy debris conditions.

Trusted by municipal departments and commercial contractors, the York TFB/HTB series is engineered to deliver day-in, day-out reliability while speeding up cleanup tasks across diverse job sites.

Key Features

  • Wide 7–10 ft Cleaning Widths Quickly sweep large areas with fewer passes
  • Heavy-Duty 32″ Brush Diameter Long-lasting, high-coverage bristle life
  • Gerotor Hydraulic Drive with Reversible Rotation Smooth, durable sweeping operation
  • Manual Angle Adjustment (15° & 30° Left/Right) Tackle curbs and tight edges with precision
  • Adjustable Down Pressure Consistent ground contact across rough or uneven surfaces
  • Custom Brush Options Choose poly, wire, or 50/50 for varied debris types
  • Mounting Flexibility TFB series fits existing truck snow plow frames; HTB series hooks to tow vehicles or tractors
  • Built for Heavy Use Ideal for municipal sweeping, snow removal, and construction site cleanup
  • Expandable Accessories Compatible with hydraulic angle kits, deflectors, sprinkler systems, and joystick controls

Detailed Specifications

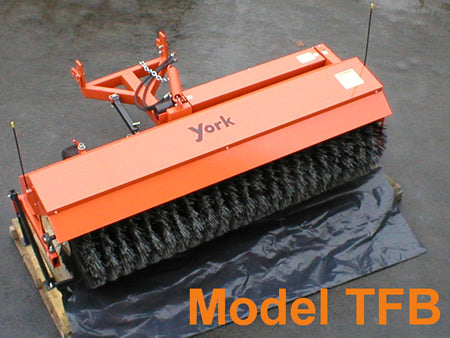

Truck Front-Mounted Rotary Brooms – 7 ft & 8 ft

Attribute TFB327 (7 ft) TFB328 (8 ft)
Part # 9607 9608
Sweeping Width ~73″ ~85″
Brush Diameter 32″ 32″
Weight (lbs) ~805 ~920
Crated Weight ~1,060 ~1,175
Angle Adjustment Manual 15°/30° L/R Manual 15°/30° L/R
Drive Type Hydraulic, reversible Hydraulic, reversible
Down Pressure Adjustable Adjustable
Brush Options Poly / Wire / 50‑50 Poly / Wire / 50‑50
Mount Type Truck-mounted plow frame Truck-mounted plow frame
Ideal Use Cases Municipal, commercial, snow Municipal, commercial, snow



Truck Front-Mounted Rotary Brooms – 9 ft & 10 ft

Attribute TFB329 (9 ft) TFB3210 (10 ft)
Part # 9609 9610
Sweeping Width ~97″ ~109″
Brush Diameter 32″ 32″
Weight (lbs) ~1,035 ~1,150
Crated Weight ~1,290 ~1,405
Angle Adjustment Manual 15°/30° L/R Manual 15°/30° L/R
Drive Type Hydraulic, reversible Hydraulic, reversible
Down Pressure Adjustable Adjustable
Brush Options Poly / Wire / 50‑50 Poly / Wire / 50‑50
Mount Type Truck-mounted plow frame Truck-mounted plow frame
Ideal Use Cases Municipal, commercial, snow Municipal, commercial, snow

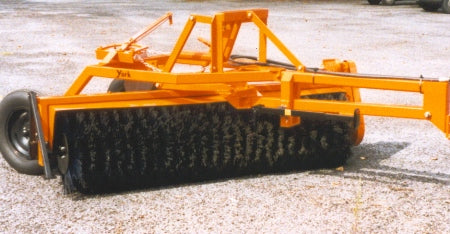

HTB Tow-Type Rotary Brooms – Section Only & Full Tow

Attribute HTB Broom Only (8 ft) HTB 8 ft Tow-Type Broom
Part # 9008 9208
Sweeping Width ~85″ ~85″
Brush Diameter 32″ 32″
Weight (lbs) ~598 ~1,220
Crated Weight ~853 ~1,475
Angle Adjustment Tilt / Manual Angle Tilt / Manual Angle
Drive Type Hydraulic, reversible Hydraulic, reversible
Down Pressure Adjustable Adjustable
Brush Options Poly / Wire / 50‑50 Poly / Wire / 50‑50
Mount Type Tow behind vehicle/tractor Tow behind vehicle
Ideal Use Cases Large toll roads or tow operations Municipal or lot sweeping towing
