Product Description

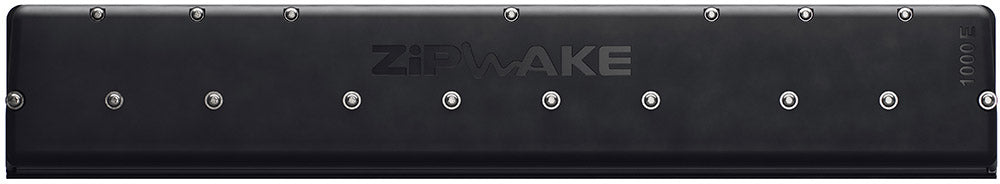

Zipwake Interceptor 1000 E with Cable Series E
DESCRIPTION
Series E is a family of large, fast-acting interceptors that includes one round model, four straight, three tunnel and four chine models. Their blade rate and stroke are 40 mm/s and 60 mm respectively. The large, modular design made for mass production means the interceptors are durable, affordable and particularly well adapted to any planing or semi-planing boat up to 30 m (100 ft).
All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of calibration-free submersible electric servos in the interceptor unit. Natural water cooling provides excellent working conditions for the brushless DC servo motors, which run on 12-32 volts.
Installation is made easy with an integral mounting plate and the option of a concealed or above- waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable differently. Each interceptor comes with the thru-hull cable fitting, cable cover and a practical drill template. For best effect, different size interceptors can be combined to span as much of the transom edge as possible. A full beam is always the optimal arrangement from a lift-to-drag ratio point of view.
Key Features
- Fast-Acting Blade: 60 mm stroke with a blade speed of 40 mm/s for dynamic adjustment.
- Submersible Servos: Brushless, high-precision motors with natural water cooling for efficiency.
- Thru-Hull Cable Fitting: Choose between concealed or above-waterline options.
- Wide Voltage Range: Operates on 12–32V DC for compatibility with various systems.
- Robust Design: Built with non-corrosive materials and IP68-rated ingress protection.
Detailed Specifications
| Specification | IT1000-E |
|---|---|
| Length | 1000 mm (39.4 in) |
| Weight | 11.5 kg (25.4 lbs) |
| Max Boat Speed | 60 knots |
| Blade Stroke | 60 mm (2.4 in) |
| Blade Rate | 40 mm/s (1.6 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Servo Actuator | SU-E |
| Cable Length | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 14.5 mm (0.57 in) |
| Supply Voltage | 12 - 32 V DC |
| Power Consumption | 25 W max/servo unit |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP68 5 m (16 ft) |
| Compliance | CE, FCC |
Manuals & Documents
Product Manual
